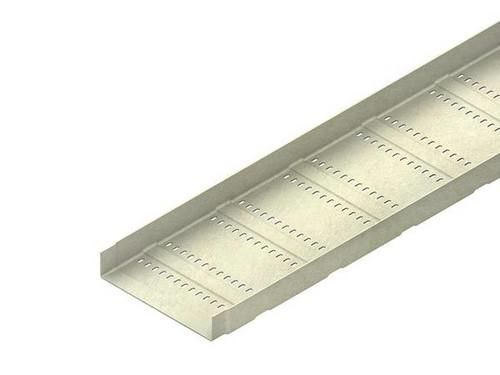

GRP cable tray, pressed, with unperforated side rails, with molded connector, with transverse reinforcements (5 mm) over the entire cable tray width and eleven-row fastening holes in the base, mechanical strength in accordance with IEC 61537, please order corresponding fastening accessories separately, halogen-free. Due to the transverse reinforcements, the cable tray is also approved for use with high-frequency cables in accordance with UTE C15-900 (application class D, frequency 16 MHz). An expansion distance of 8 mm must be taken into account. Due to the expansion of the material, the following must be observed during assembly: - The cable tray should not be screwed close to or at the joint. - When screwing the cable tray onto the brackets, a through hole of Ø 9 mm for the FKM 6X20 E4 screws must always be made in the tray. Article also available in ...AC (resin mixture with acrylic resin). Dimensions (approx. dimensions) H x W: 80 x 300 mm Material thickness t: 3 mm Bottom bead shape: 60 x 5 mm Bottom bead shape Grid dimension: 313 mm Bottom perforation: 9 x 20 mm Row spacing: 25 mm Bottom hole spacing Grid dimension: 313 mm Load-bearing capacity F with a support spacing of 1.5 m: 0.5 kN/m Delivery length: 3000 mm Usable cross-section: 20520 mm² Material: UP-GF (glass fiber reinforced polyester) Color: pebble gray RAL: 7032 (similar)
| Property | Value |
| Height: | 80 mm |
| Width: | 300 mm |
| Length: | 3000 mm |
| Material: | Plastic |
| Surface: | other |
| Suitable for functional integrity: | no |
| Material thickness: | 3 mm |
| RAL number: | 7032 |
| Side perforation: | no |
| Usable Cross section: | 20592 mm² |
| Mounting holes in the base: | yes |
| NATO hole pattern: | no |
| Design: | integrated connector |
| Wide span design: | no |
| Stainless steel, pickled: | no |
| Material quality: | GFRP |
| With upper part: | no |
