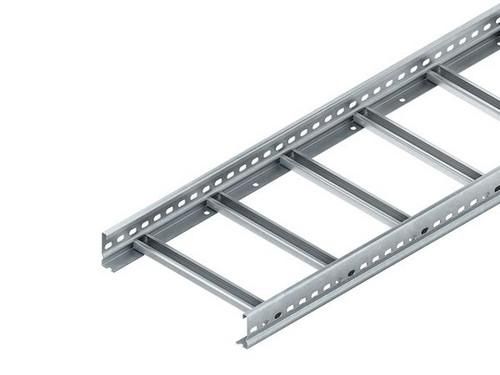

Cable ladder in accordance with DIN EN 61537, with continuously perforated and profiled side rails, with riveted rungs made of C-profiles with a slot width of 16 mm. Matching clamps (B...). Please observe additional regulations for use in functional maintenance! Dimensions (approx. dimensions) H x W: 60 x 200 mm Material thickness of the beam: 1.5 mm Rung spacing: 150 mm Side beam holes: 9 x 15 mm center distance: 25 mm Floor holes: Ø 8.5 and Ø 5.4 mm center distance: 100 mm and 50 mm Delivery length L: 6000 mm Usable cross-section: 8500 mm² Material: Steel, strip galvanized according to DIN EN 10346
| Property | Value |
| Design of the side beam: | Profile (open) |
| Fastening of the rung: | blind riveted |
| Width: | 200 mm |
| Suitable for functional integrity: | no |
| Height: | 60 mm |
| Rung centre distance: | 150 mm |
| Wide span design: | no |
| Rung design: | Profile unperforated |
| Surface: | strip galvanized |
| Side perforation: | yes |
| Length: | 6000 mm |
| Usable cross-section: | 8500 mm² |
| Material: | Steel |
| Material quality: | other |
Features
Suitable for Functional integrity
No
HAB
KL60.215
Minimal order
6 meters
Manufacturer
HAN
KL 60.215
GTIN
4013339346400
Width
200 mm
Height
60 mm
Length
6000 mm
Surface
Strip galvanized
Material
Steel
Material quality
Other
