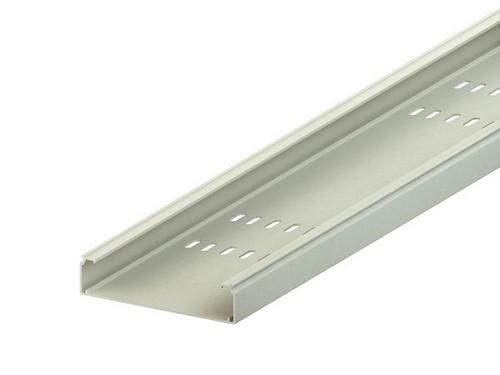

GRP cable tray, pultruded, with unperforated side rails and seven rows of fastening holes in the base, mechanical strength in accordance with IEC 61537, please order appropriate fastening accessories separately, halogen-free. The joint connector KPGH 50 is not included in the scope of delivery, please order separately. When installing the joint connector KPGH 50, the expansion distance of the cable trays of approx. 3 mm is automatically taken into account. Due to the expansion of the material, the following must be observed during installation: - The cable tray should not be screwed close to or at the joint. - When screwing the cable tray onto the brackets, a through hole of Ø 9 mm for the FKM 6X20 E4 screws must always be made in the tray. Article also available in ...AC (resin mixture with acrylic resin). Dimensions (approx. dimensions) H x W: 50 x 200 mm Material thickness t: 2.5 mm Bottom perforation: 9 x 30 mm Outer row spacing: 20 mm Each additional row spacing: 25 mm Bottom hole spacing Grid dimension: 500 mm Delivery length: 3000 mm Usable cross-section: 8480 mm² Material: UP-GF (glass fiber reinforced polyester) Color: pebble gray RAL: 7032 (similar)
| Property | Value |
| Height: | 50 mm |
| Width: | 200 mm |
| Length: | 3000 mm |
| Material: | Plastic |
| Surface: | other |
| Suitable for functional integrity: | no |
| Material thickness: | 2.5 mm |
| RAL number: | 7032 |
| Side holes: | no |
| Usable cross section: | 8480 mm² |
| Mounting holes in Base: | yes |
| NATO hole pattern: | no |
| Design: | without connectors |
| Wide span design: | no |
| Stainless steel, pickled: | no |
| Material quality: | GFRP |
| With top: | no |
