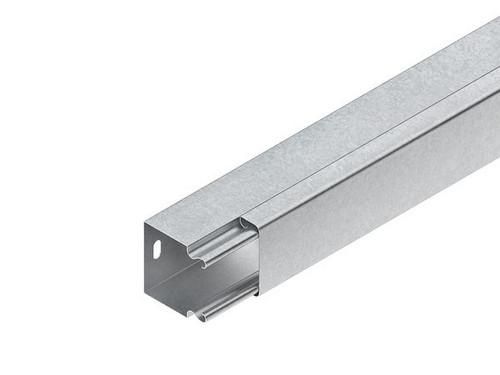

Cable protection duct, with snap-on cover and single-row fastening holes in the duct base, visible surfaces electrostatically powder-coated in RAL color according to the manufacturer's catalog, the potential equalization of the cover takes place automatically when snapped on, accessories for potential equalization, two joint connectors LST... per joint, must be ordered separately.validated! Dimensions (approx. dimensions) H x W : 60 x 60 mm single row bottom perforation : 4.2 x 12 and 7 x 15 mm bottom hole spacing grid dimension : 250 mm Delivery length L : 2000 mm Color : [customer information required] RAL : [customer information required] Material : steel, strip galvanized according to DIN EN 10346
| Property | Value |
| Length: | 2000 mm |
| Height: | 60 mm |
| Width: | 60 mm |
| Color: | other |
| Material: | steel |
| Material quality: | other |
| Usable cross-section: | 3182 mm² |
| Transparent: | no |
| Halogen-free: | yes |
| Fastening type: | bottom perforation |
| Suitable for functional integrity: | no |
| Surface protection: | strip galvanized and coated |
| Cover design: | loose |
| Number of pluggable partitions: | 1 |
| With cable retaining clip: | no |
| With protective film: | no |
| With channel connector: | no |
| Delivery on a roll: | no |
| Pre-punched: | no |
| Antibacterial treatment: | no |
| Protection class (IP): | IP20 |
| Operating temperature: | -5 to 90 °C |
Features
Suitable for Functional integrity
No
Pre-punchings
No
HAB
With lid 60x60x2000mm special colour
Minimal order
2 meters
Manufacturer
HAN
LLK60.060C
GTIN
4013339509935
Antibacterial treatment
No
Cover design
Loose
Mounting type
Bottom perforation
Width
60 mm
Operating temperature
-5 to 90 °C
Color
Halogen free
Yes
Height
60 mm
Length
2000 mm
Surface protection
Strip galvanized and coated
IP protection)
IP20
Transparent
No
Material
Steel
Material quality
Other
