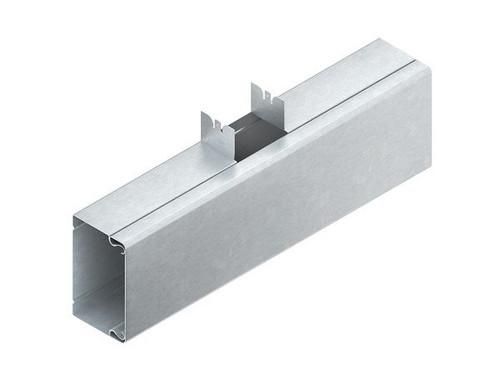

Cable protection duct T-piece 90°, with snap-on cover, duct base unperforated, connection lugs with earthing tab aligned with the duct, these must be bent up once on site at a right angle to the pre-formed notches for the outlet, the potential equalization between the ducts takes place via the butt connector LST... and the potential equalization cable GSLH... (please order separately), with the covers automatically when snapped on. Certified! Use for: Cable protection ducts LLK... / LUK... Dimensions (approx. dimensions) Main direction H x W: 60 x 150 mm Outlet H x W: 60 x 150 mm The height of the outlet corresponds to the height of the main direction! Length L: 350 mm Material: Steel, strip galvanized according to DIN EN 10346
| Property | Value |
| Material quality: | other |
| Outgoing width: | 150 mm |
| Suitable for functional integrity: | no |
| Outgoing height: | 60 mm |
| Height: | 60 mm |
| Width: | 150 mm |
| Design: | Lower part and upper part |
| Material: | Steel |
| Halogen-free: | yes |
| Surface: | strip-galvanized |
| With protective film: | no |
Features
Suitable for Functional integrity
No
HAB
With lid 60x150mm strip galvanized
Manufacturer
HAN
LUT60.150.150
GTIN
4013339515707
Version
Bottom and top
Width
150 mm
Halogen free
Yes
Height
60 mm
Surface
Strip galvanized
Material
Steel
Material quality
Other
