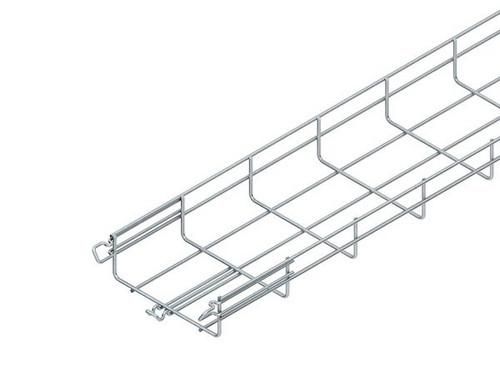

Grate wire mesh according to DIN EN 61537, U-shaped, made of steel wires, spot-welded, for quick fastening with welded joint connectors in the sides and in the base. Certified! Dimensions (approx. dimensions) Nominal dimensions H x W (inside): 54 x 150 mm Longitudinal wire diameter: 3.9 mm Floor longitudinal wire spacing: 50 mm Cross wire diameter: 3.9 mm Cross wire spacing: 100 mm Delivery length L: 3000 mm Usable cross section: 7665 mm² Material: Stainless steel, material no. 1.4301, 1.4303
| Property | Value |
| Height: | 54 mm |
| Width: | 150 mm |
| Length: | 3000 mm |
| Wire diameter: | 3.9 mm |
| Screwless connectors: | no |
| Wide span design: | no |
| Profile shape: | U-shape |
| Suitable for functional integrity: | no |
| Material: | stainless steel |
| Surface: | other |
| Design: | integrated connector |
| Integrated partition wall: | without |
| Usable cross-section: | 7665 mm² |
Features
Suitable for Functional integrity
No
HAB
MTC54.150E3
Minimal order
3 meter
Manufacturer
HAN
MTC54.150E3
GTIN
4013339713097
Version
Integrated connector
Width
150 mm
Height
54 mm
Length
3000 mm
Surface
Other
Material
Stainless steel
