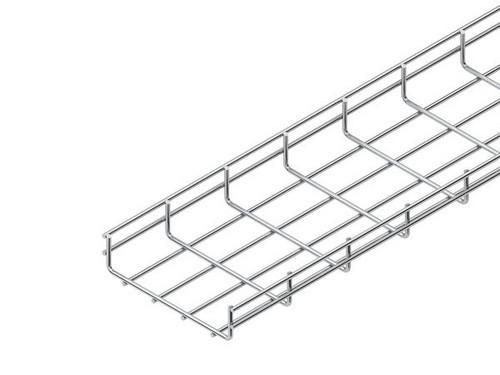

Grate wire mesh tray in accordance with DIN EN 61537, U-shaped, made of steel wires, spot-welded, without connectors. Please order MTSCO 6 connectors separately. To ensure optimum loading of the grid wire mesh tray, please note the information on the number and exact positioning of the connectors. Dimensions (approx. dimensions) Nominal dimensions H x W (inside): 54 x 100 mm Longitudinal wire diameter: 6.0 mm Floor longitudinal wire spacing: 50 mm Cross wire diameter: 6.0 mm Cross wire spacing: 100 mm Delivery length L: 3000 mm Usable cross section: 5110 mm² Material: Steel, galvanized according to DIN EN ISO 2081, blue passivated
| Property | Value |
| Height: | 54 mm |
| Width: | 100 mm |
| Length: | 3000 mm |
| Wire diameter: | 6 mm |
| Screwless connectors: | no |
| Wide span version: | no |
| Profile shape: | U-shape |
| Suitable for functional integrity: | no |
| Material: | steel |
| Surface: | galvanized/electrolytically galvanized |
| Version: | without connectors |
| Integrated partition wall: | without |
| Usable cross-section: | 5110 mm² |
| Material quality: | other |
Features
Suitable for Functional integrity
No
HAB
U-shaped 54x100x3000mm steel galvanized
Minimal order
3 meter
Manufacturer
HAN
MTS 54.100 V
GTIN
4013339193226
Version
Without connector
Width
100 mm
Height
54 mm
Length
3000 mm
Surface
Galvanized/electrolytically galvanized
Material
Steel
Material quality
Other
