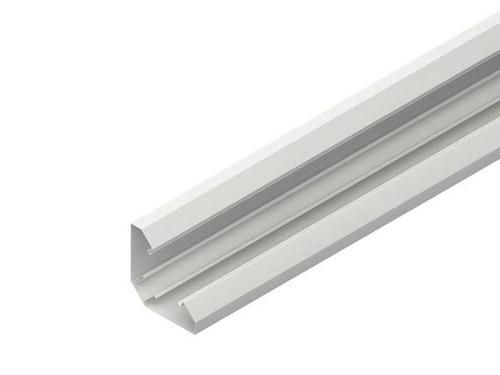

Device duct, desk duct base, visible surfaces electrostatically powder-coated in RAL color according to manufacturer's catalog, with riveted hat-shaped support rail TS 35 for holding built-in components that can be attached to support rails according to DIN EN 60715, device installation in the cable run with snap-in device box for installation programs with 80 mm cover frame and 60 mm fastening track or for holding dividers, etc., device installation without perforated panels, including 3 cable retaining clips GKF... each 2 m delivery length, accessories for potential equalization must be ordered separately. Dimensions (approx. dimensions) H x D: 120 x 120 mm Lid opening: 78 mm Delivery length L: 2000 mm Usable cross-section: 7956 mm² Color: [customer information required] RAL: [customer information required] Material: Steel, strip galvanized according to DIN EN 10346
| Property | Value |
| Width: | 120 mm |
| Length: | 2000 mm |
| Depth: | 120 mm |
| Color: | other |
| Material: | Steel |
| Halogen-free: | yes |
| Design rectangular: | no |
| Number of top parts: | 1 |
| Top part width 1: | 78 mm |
| Symmetrical: | yes |
| Material quality: | other |
| Surface: | strip galvanized and coated |
| Rear wall design (inside): | continuous DIN rail |
| With protective film: | yes |
| Number of pluggable partitions: | 1 |
| With channel connector: | no |
| Mounting holes in the base: | no |
| Mounting type of upper parts: | internal |
| With cable retaining clip: | yes |
| Usable cross-section: | 7577 mm² |
| Tops included: | no |
