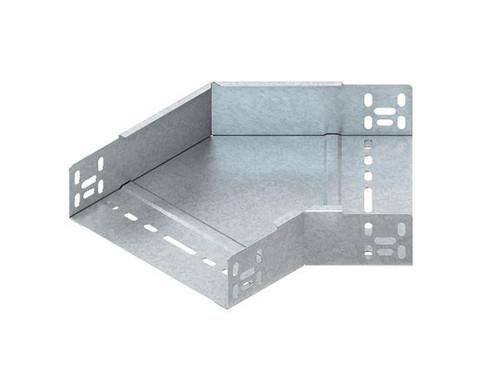

45° bend, with unperforated side rails, with connector holes for the connection, for cable trays, for creating 45° horizontally angled cable trays, with integrated butt connectors, including proportional fastening accessories.certified! for cable trays: 60 mm edge height Dimensions (approx. dimensions) inside H x W: 60 x 602 mm Material: Steel, strip galvanized according to DIN EN 10346
| Property | Value |
| Cable tray height: | 60 mm |
| Cable tray width: | 600 mm |
| Material thickness: | 0.9 mm |
| Inner radius: | 100 mm |
| Change of direction: | horizontal |
| Suitable for Functional integrity: | yes |
| Design: | integrated connector |
| Material: | steel |
| Surface: | strip galvanized |
| Bend (angle): | 45° |
| Side holes: | yes |
| Mounting holes in the base: | yes |
| NATO hole pattern: | no |
| Wide span version: | no |
| Stainless steel, pickled: | no |
| Material quality: | other |
| Design: | rigid arch |
| With upper part: | no |
| Arch version: | smooth arch |
Features
Suitable for Functional integrity
Yes
Material thickness
0.9 mm
HAB
45° for KR 60x602mm strip galvanized
Manufacturer
HAN
RBA60.600
GTIN
4013339225903
Version
Integrated connector
Design
Bow rigid
Surface
Strip galvanized
Material
Steel
Material quality
Other
