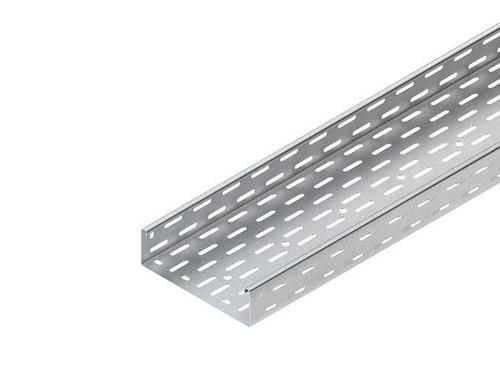

Cable tray, according to DIN EN 61537, with offset bottom and side perforations, continuous central hole perforation for suspension with threaded rods M 10/..., including one-piece U-shaped joint connector RV 60... and corresponding fastening accessories. Dimensions (approx. dimensions) H x W: 60 x 400 mm Material thickness: 1 mm Center hole: Ø 11 mm Delivery length: 3000 mm Usable cross section: 23800 mm² Material: Steel, strip galvanized according to DIN EN 10346
| Property | Value |
| Height: | 60 mm |
| Width: | 400 mm |
| Length: | 3000 mm |
| Material: | Steel |
| Surface: | strip galvanized |
| Suitable for functional integrity: | no |
| Material thickness: | 1 mm |
| Side holes: | yes |
| Usable cross-section: | 23800 mm² |
| Mounting holes in the base: | yes |
| NATO hole pattern: | no |
| Design: | connector supplied |
| Wide span version: | no |
| Stainless steel, pickled: | no |
| Material quality: | other |
| With upper part: | no |
Features
Suitable for Functional integrity
No
Material thickness
1 mm
HAB
RL60.400
Minimal order
3 meter
Manufacturer
HAN
RL60.400
GTIN
4013339220502
Version
Supplied connector
Width
400 mm
Height
60 mm
Length
3000 mm
Surface
Strip galvanized
Material
Steel
Material quality
Other
