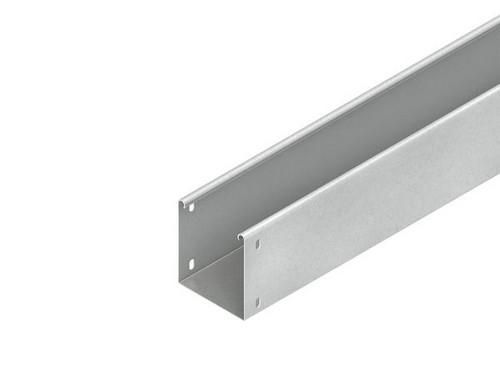

Cable tray according to DIN EN 61537, heavy, unperforated, with connector holes for connection, including one-piece U-shaped joint connector RV 110... and corresponding fastening accessories. Dimensions (approx. dimensions) H x W: 110 x 200 mm Material thickness t: 1.5 mm Delivery length L: 3000 mm Usable cross-section: 21800 mm² Material: Steel, strip galvanized according to DIN EN 10346
| Property | Value |
| Height: | 110 mm |
| Width: | 200 mm |
| Length: | 3000 mm |
| Material: | Steel |
| Surface: | strip galvanized |
| Suitable for functional integrity: | no |
| Material thickness: | 1.5 mm |
| Side holes: | no |
| Usable cross-section: | 21800 mm² |
| Mounting holes in the base: | no |
| NATO hole pattern: | no |
| Design: | connector supplied |
| Wide span version: | no |
| Stainless steel, pickled: | no |
| Material quality: | other |
| With upper part: | no |
Features
Suitable for Functional integrity
No
Material thickness
1.5 mm
HAB
RSU110,200
Minimal order
3 meter
Manufacturer
HAN
RSU 110.200
GTIN
4013339246106
Version
Supplied connector
Width
200 mm
Height
110 mm
Length
3000 mm
Surface
Strip galvanized
Material
Steel
Material quality
Other
