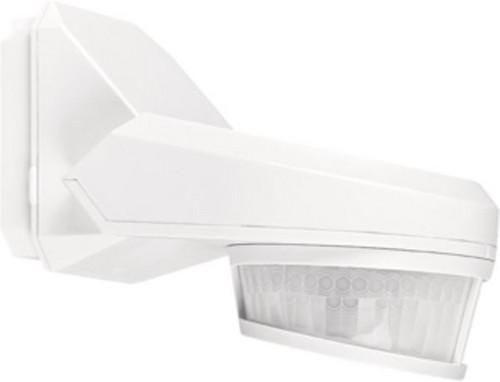

First-class motion detector with real small animal suppression, for wall or ceiling mounting, Technical data: Nominal voltage: 230 Volt / 50Hz, Power consumption: <, 0.25W standby, Switching capacity: 2000 W, 8.7A max. (cos phi = 1), 1000 VA, 4.35A max. inductive (cos phi = 0.5), Potential-free relay, Time setting: Pulse approx. 1 sec (20 or 60 sec pause), approx. 10 sec to 20min, Twilight: 5-2000 Lux, IR remote control: Auto, On, OFF (4-6m range), Small animal suppression ON/OFF, Directable: 90° vertical, 90° horizontal, Detection range: 120° or 240° or 300° horizontal, +360° Creep guard, range: 16m max. frontal, 16m max. sideways, 4m creep guard, installation height: 2m to 5m (2.5m standard), dimensions: 148x105x85 mm, temperature range: -20° to +50° C, protection class II, including end customer hand-held transmitter, corner base for 300° version incl.
| Property | Value |
| Depth: | 148 mm |
| Width: | 105 mm |
| Height: | 112 mm |
| Version: | motion detector |
| Color: | white |
| Nominal voltage: | 230 V |
| RAL number (similar): | 9010 |
| Material: | plastic |
| Mounting type: | surface-mounted |
| Response brightness: | 5 to 2000 lx |
| Protection class (IP): | IP54 |
| Max. switching capacity: | 2000 W |
| Voltage type: | AC |
| Max. range to one side: | 16 m |
| Scan angle: | 300 ° |
| Suitable for wall mounting: | yes |
| Min. duty cycle: | 10 s |
| Max. Duty cycle: | 20 min |
| Creep-under protection/rear field monitoring: | yes |
| Temperature: | -20 to 50 °C |
| Adjustable response brightness: | yes |
| Adjustable response sensitivity: | yes |
| Max. presence area: | 670 m² |
| Max. frontal range: | 16 m |
| Max. Inrush current: | 8.7 A |
| Sensor type: | passive infrared |
| Optimal mounting height: | 3 m |
| Surface finish: | matt |
| Surface: | untreated |
| Material quality: | thermoplastic |
| Detection field diameter on floor: | 32 m |
| Number of switching zones: | 1 |
| Detection angle horizontal: | 0 to 300 ° |
| Frequency: | 50 Hz |
| Sensor swivel range, vertical: | 0 to 180 ° |
| Halogen-free: | yes |
| Constant light control: | no |
| HVAC control: | no |
| Forced shutdown: | no |
| Animal corridor: | no |
| Networkable: | no |
| Staircase monitoring: | yes |
| Suitable for wireless transmission: | no |
| Remote control: | yes |
| Alarm function: | no |
| Teach function for response brightness: | yes |
| Transparent: | no |
| With remote control: | yes |
| Suitable for C load: | yes |
| With DALI interface: | no |
| Extension input: | no |
| Forced switching on: | no |
| Suitable for ceiling mounting: | yes |
| Connection type: | Plug-in terminal |
| Antibacterial treatment: | yes |
| Min. Inrush current: | 4.35 A |
