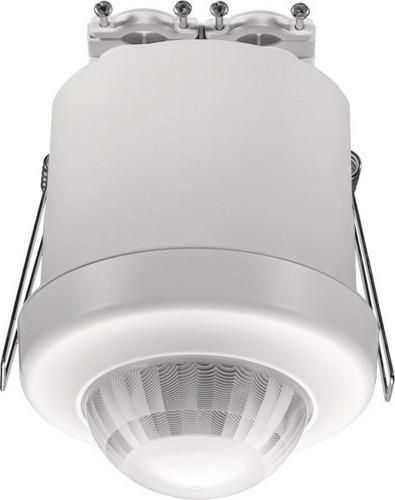

Ideal for DALI applications in open-plan offices, classrooms, meeting rooms, etc. Operation in master/slave configuration with up to 10 DALI slave detectors connected to a master device Increases the detection range of the master detector Direct connection to the DALI bus line, no additional wiring to the Swiss Garde 360 DALI Master Comfort required Minimum power consumption: 0.1W Increased splash protection IP54
| Property | Value |
| Depth: | 136 mm |
| Width: | 100 mm |
| Height: | 100 mm |
| Version: | Presence detector |
| Color: | white |
| Nominal voltage: | 230 V |
| RAL number (similar): | 9010 |
| Material: | Plastic |
| Mounting type: | Flush-mounted |
| Protection class (IP): | IP54 |
| Voltage type: | AC |
| Max. range to one side: | 12 m |
| Scan angle: | 360 ° |
| Suitable for wall mounting: | no |
| Creep-by protection/rear field monitoring: | no |
| Temperature: | -5 to 50 °C |
| Adjustable response brightness: | no |
| Adjustable response sensitivity: | yes |
| Max. presence area: | 453 m² |
| Max. Frontal range: | 12 m |
| Sensor type: | passive infrared |
| Optimal installation height: | 3 m |
| Surface finish: | matt |
| Material quality: | thermoplastic |
| Detection field diameter on floor: | 24 m |
| Number of switching zones: | 3 |
| Horizontal detection angle: | 0 to 360 ° |
| Halogen-free: | yes |
| Constant light control: | yes |
| HVAC control: | no |
| Forced shutdown: | no |
| Animal corridor: | no |
| Networkable: | yes |
| Staircase monitoring: | no |
| Suitable for wireless transmission: | no |
| Remote controllable: | yes |
| With signal unit: | no |
| Alarm function: | no |
| Teach function for response brightness: | no |
| Dimming function with dimmer insert: | yes |
| Transparent: | no |
| With remote control: | no |
| Suitable for C load: | no |
| With DALI interface: | yes |
| Extension input: | yes |
| Suitable for ceiling mounting: | yes |
| Connection type: | screw terminal |
| Antibacterial treatment: | no |
| Impact resistance: | IK02 |
| Min. Inrush current: | 0.000001 A |
| Diameter: | 100 mm |
| Installation width: | 90 mm |
| Installation depth: | 90 mm |
| Installation length: | 90 mm |
| Installation diameter: | 90 mm |
| Min. depth of device box: | 90 mm |
Features
With signal unit
No
Number of switching zones
3
Forced shutdown
No
Scanning angle
360 °
Max. presence range
453 m²
Manufacturer
HAN
41752
GTIN
3505100417521
Dimming function with dimming insert
Yes
Alarm function
No
Connection type
Screw terminal
Response sensitivity adjustable
Yes
Response brightness adjustable
No
Antibacterial treatment
No
Version
Presence detector
Surface finish
Frosted
Width
100 mm
Diameter
100 mm
Installation width
90 mm
Installation diameter
90 mm
Installation length
90 mm
Installation depth
90 mm
Detection field diameter on floor
24m
Detection angle horizontal
0 to 360 °
Color
Remote controllable
Yes
Suitable for C-load
No
Suitable for ceiling mounting
Yes
Suitable for wall mounting
No
Suitable for wireless transmission
No
HVAC control
No
Halogen free
Yes
Height
100 mm
Constant light control
Yes
Max. range frontal
12m
Max. range to one side
12m
Min. depth of the device box
90 mm
With DALI interface
Yes
With remote
No
Mounting type
Flush-mounted
Extension input
Yes
Nominal voltage
230V
Optimal mounting height
3m
RAL number (similar)
9010
Impact resistance
IK02
IP protection)
IP54
Sensor type
Passive infrared
Voltage type
AC
Teach function for response brightness
No
Temperature
-5 to 50 °C
Depth
136 mm
Animal corridor
No
Transparent
No
Staircase monitoring
No
Creep protection/rear field monitoring
No
Networkable
Yes
Material
Plastic
Material quality
Thermoplastic
