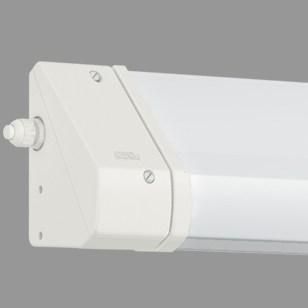

Ceiling and wall-mounted light made of plastic with LEDs. Acid, alkali and fuel-resistant light housing made of weather-resistant, glass-fiber reinforced plastic. Lamp and device compartment thermally separated. Short sealing system consisting of age-resistant, dimensionally stable silicone/synthetic rubber. Lamp cover with internal aluminum reflector (MIRO-SILVER®) reflector. Ready for connection via two M20 cable glands on the front and through-wiring. Installation using two stainless steel mounting plates.
| Property | Value |
| System power: | 16 W |
| Luminous flux: | 1960 lm |
| Number of LM: | 1 |
| Length: | 757 mm |
| Width: | 123 mm |
| Height/depth: | 165 mm |
| Protection rating (IP): | IP65 |
| Protection class: | II |
| Luminaire with limited surface temperature D-mark according to EN 60598-2-24: | yes |
| Nominal voltage: | 230 to 240 V |
| Housing color: | white |
| Housing material: | plastic |
| Color temperature: | 4000 K |
| Impact resistance: | IK08 |
| Color rendering index CRI: | 90-100 |
| Suitable for ceiling mounting: | yes |
| Voltage type: | AC/DC |
| With Motion detector: | no |
| Beam angle: | medium beam 21-40° |
| With light source: | yes |
| Light source: | LED not replaceable |
| Temperature: | -25 to 40 °C |
| Connection type: | Plug terminal |
| With operating device: | yes |
| Cover material: | Opal plastic |
| Light distributor: | Reflector |
| Without Dimming function: | yes |
| Light emission: | direct |
| Light distribution: | asymmetrical |
| With light sensor: | no |
| Operating device: | LED operating device voltage controlled |
| Suitable for recessed mounting: | no |
| Light color: | white |
| Suitable for computer workstations in accordance with EN 12464-1: | no |
| Suitable for light strip configuration: | yes |
| Suitable for pendant suspension: | no |
| Suitable for Surface mounting: | yes |
| Suitable for emergency lighting: | yes |
| Design of the grid: | without |
| Covering of the luminaire with thermal insulation material possible: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| With air slots: | no |
| Dimming LineSwitch: | no |
| Dimming Potentiometer (integrated in the device): | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Suitable for lamp power: | 13 W |
| Luminous efficacy: | 98 lm/W |
| Power factor: | 0.98 |
| Type of wiring: | with through wiring |
| Conductor cross-section: | 1.5 mm² |
| Surface protection Housing: | untreated |
| Nominal current: | 70 mA |
| Replaceable operating device: | yes |
| DALI-2 dimming: | no |
| Color consistency (McAdam ellipse): | SDCM3 |
| Luminous flux maintenance for an average service life of 50,000 hours at an ambient temperature of 25 °C: | 80 % |
| Failure rate for an average service life of 35,000 hours at an ambient temperature of 25 °C (tq): | 3.5 % |
| Failure rate for an average service life of 35,000 hours at an ambient temperature of 25 °C Service life of 50,000 hours at 25 °C ambient temperature (tq): | 5 % |
| Max. number of luminaires circuit breaker B16: | 16 |
| Max. Number of lights Circuit breaker C16: | 26 |
| Integrated emergency power supply: | no |
| Constant luminous flux control: | no |
| Photobiological safety according to EN 62471: | RG1 |
| Glare limitation (UGR): | 16.3 |
| Adjustable color temperature: | no |
| Adjustable luminous flux: | no |
| Adjustable beam angle: | no |
| Operation via Bluetooth: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
| IFTTT support available: | no |
Features
Number of LM
1
HAB
FULDA m600 PMMA 940/4000K angled
Manufacturer
HAN
5452800423-048
GTIN
4050018001892
Covering the luminaire with thermal insulation material possible
No
Connection type
Plug-in terminal
Type of wiring
With through wiring
Execution of the grid
Without
Beam angle
Medium beam 21-40°
Beam angle adjustable
No
Replaceable operating device
Yes
Operation via Bluetooth
No
Operating device
LED control gear voltage controlled
Suitable for computer workstations according to EN 12464-1
No
Glare limitation (UGR)
16.3
Width
123 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color consistency (McAdam ellipse)
SDCM3
Color temperature
4000K
Color temperature adjustable
No
Color rendering index CRI
90-100
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
No
Suitable for lamp power
13 W
Suitable for light strip configuration
Yes
Suitable for emergency lighting
Yes
Suitable for pendulum suspension
No
Housing color
White
Glow wire test according to IEC 60695-2-11
650 °C - 30 s
Height/Depth
165 mm
IFTTT support available
No
Compatible with Amazon Alexa
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Constant luminous flux control
No
Power factor
0.98
Conductor cross-section
1.5 mm²
Luminaire with limited surface temperature D-mark according to EN 60598-2-24
Yes
Luminaire luminous efficacy
98lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
1960 lm
Luminous flux adjustable
No
Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.
80 %
Light distributor
Reflector
Light distribution
Asymmetrical
Length
757 mm
Max. number of luminaires Circuit breaker B16
16
Max. number of luminaires Circuit breaker C16
26
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
With air slots
No
Nominal voltage
230 to 240 V
Rated current
70mA
Emergency power supply integrated
No
Surface protection housing
Untreated
Without dimming function
Yes
Photobiological safety according to EN 62471
RG1
Impact resistance
IK08
IP protection)
IP65
Protection class
II
Voltage type
AC/DC
System performance
16W
Temperature
-25 to 40 °C
Cover material
Plastic opal
Housing material
Plastic
