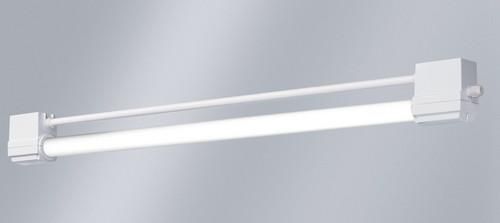

Plastic light with LEDs. Can be used in industrial applications with demanding environmental conditions. Suitable for production facilities and suppliers to the food and beverage industry. Heat-resistant (HT) version suitable for temperatures up to +60 °C, high-heat-resistant (VHT) version suitable up to +90 °C. Weather-resistant light housing made of thermosetting plastic. Can be used indoors and outdoors in accordance with protection class IP 65, IP 66, IP 67 and IP 68, 1 m. Lamp and device compartment thermally separated. Short sealing system consisting of age-resistant, dimensionally stable silicone/synthetic rubber. Lamp protection tube 38 mm made of PC Tropal® (shatter-proof). Light ready for installation and connection. Two M20 cable entries on the front. Individual installation or light strip installation (only for HT version). Ceiling mounting using two plastic clamps, variable mounting distance.
Property | Value |
System power: | 30 W |
Luminous flux: | 3629 lm |
Number of LM: | 1 |
Length: | 1432 mm |
Width: | 77 mm |
Height/depth: | 129 mm |
Protection rating (IP): | IP66 |
Protection class: | II |
Luminaire with limited surface temperature D-mark according to EN 60598-2-24: | yes |
Nominal voltage: | 230 to 240 V |
Housing color: | white |
Housing material: | plastic |
Color temperature: | 4000 K |
Impact resistance: | IK09 |
Color rendering index CRI: | 80-89 |
Suitable for ceiling mounting: | yes |
Voltage type: | AC/DC |
With Motion detector: | no |
Beam angle: | wide beam 41-80° |
With light source: | yes |
Light source: | LED not replaceable |
Temperature: | -25 to 60 °C |
Connection type: | other |
With operating device: | no |
Cover material: | opal plastic |
Light distributor: | other |
Without Dimming function: | yes |
Light emission: | direct |
Light distribution: | symmetrical |
With light sensor: | no |
Operating device: | LED operating device voltage controlled |
Suitable for recessed mounting: | no |
Light color: | white |
Suitable for computer workstations in accordance with EN 12464-1: | no |
Suitable for light strip configuration: | yes |
Suitable for pendant suspension: | no |
Suitable for Surface mounting: | yes |
Suitable for emergency lighting: | no |
Design of the grid: | without |
Covering of the luminaire with thermal insulation material possible: | no |
Dimming DMX: | no |
Dimming DSI: | no |
With air slots: | no |
Dimming LineSwitch: | no |
Dimming Potentiometer (integrated in the device): | no |
Dimming 0-10 V: | no |
Dimming 1-10 V: | no |
Dimming manufacturer-specific: | no |
Dimming DALI: | no |
Dimming mains voltage modulation: | no |
Dimming trailing edge: | no |
Dimming leading edge: | no |
Dimming programmable: | no |
Dimming RF: | no |
Dimming Sine Wave Reduction: | no |
Dimming Touch and Dim: | no |
Dimming Zigbee: | no |
Dimming with push button: | no |
Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
Suitable for lamp power: | 27 W |
Luminaire luminous efficacy: | 121 lm/W |
Power factor: | 0.99 |
Type of wiring: | with through wiring |
Number of poles: | 4 |
Conductor cross-section: | 1.5 mm² |
Surface protection Housing: | untreated |
Nominal current: | 130 mA |
Replaceable operating device: | yes |
DALI-2 dimming: | no |
Color consistency (McAdam ellipse): | SDCM3 |
Luminous flux maintenance for an average service life of 50,000 hours at an ambient temperature of 25 °C: | 80 % |
Failure rate for an average service life of 35,000 hours at an ambient temperature of 25 °C (tq): | 3.5 % |
Failure rate for an average service life of 35,000 hours at an ambient temperature of 25 °C Service life of 50,000 hours at 25 °C ambient temperature (tq): | 5 % |
Max. number of luminaires circuit breaker B16: | 25 |
Max. Number of lights circuit breaker C16: | 40 |
Integrated emergency power supply: | no |
Constant luminous flux control: | no |
Photobiological safety according to EN 62471: | RG1 |
Glare limitation (UGR): | 25.3 |
Adjustable color temperature: | no |
Adjustable luminous flux: | no |
Adjustable beam angle: | no |
Operation via Bluetooth: | no |
Compatible with Apple HomeKit: | no |
Compatible with Google Assistant: | no |
Compatible with Amazon Alexa: | no |
IFTTT support available: | no |
