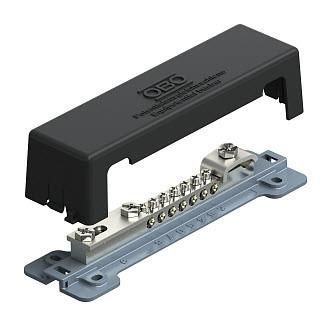

Equipotential bonding rail connection options: - 7 x single or multi-wire cables up to 25 mm or fine-wire cables up to 16 mm - 1 x round conductor Rd 8-10 - 1 x flat strip up to FL30 or round conductor Rd 8-10 - cover made of polystyrene - base plate made of steel, zinc-iron surface - UV-resistant - screws and cleats made of VA - lightning current carrying capacity 50 kA (10/350) Color: black Weight: 23 kg/100 pcs. Type: 1809 AM Item no.: 5015105
| Property | Value |
| Length: | 188 mm |
| Total number of round conductor connections: | 1 |
| Width: | 52 mm |
| Height: | 44.5 mm |
| Design: | Fixed structure |
| Version: | with cover hood |
| Material of the contact rail: | brass |
| Surface of the contact rail: | nickel-plated |
| Material of the terminal: | steel |
| Surface of the terminal: | galvanized/electrolytically galvanized |
| Number of connections for round conductors 8-10 mm: | 1 |
| Number of connections for flat conductors up to 30 mm: | 1 |
| Number of connections for rigid cables up to 25 mm²: | 7 |
Features
HAB
1809 AM for outside 188mm black
Manufacturer
HAN
5015105
GTIN
4012196587292
Version
With cover
Design
Structure fixed
Width
52 mm
Height
44.5 mm
Length
188 mm
