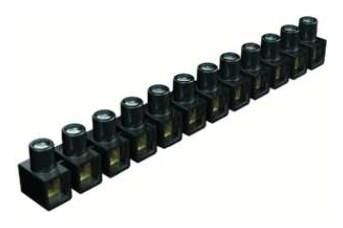

Terminals made of brass, screws made of steel, galvanized and transparently passivated, 12-pole strip that can be separated into individual terminals, open on one side only. Closed on one side, screws turned up, captive. Nominal cross section 2.5 mm Nominal voltage 250 V Nominal current 24 A Max. connectable cross sections per terminal point: 4 x 2.5 mm, 5 x 1.5 mm or 6 x 1 mm. Delivered in color-sorted quantities: 3 black, 2 blue, 3 yellow-green, 1 brown and 1 gray stripes per packaging unit.
| Property | Value |
| Number of poles: | 12 |
| Rated voltage: | 250 V |
| Material of the insulating body: | Thermoplastic |
| Rated current In: | 24 A |
| Color: | multicolored |
| Center hole spacing: | 11 mm |
| QS single-wire: | 1 to 2.5 mm² |
| Mounting type: | Direct mounting |
| Design of electrical connection 1: | Screw connection |
| Number of terminal points per pole: | 1 |
| End plate required: | no |
| Transparent: | no |
| Halogen-free: | yes |
| Width: | 12 mm |
| Height: | 17.5 mm |
| Depth: | 129.6 mm |
Features
HAB
70/S 2.5mm2 sorted
Minimal order
10 pcs
Manufacturer
HAN
2055201
GTIN
4012195183853
Rated voltage
250V
Rated current In
24A
Width
12 mm
Color
Halogen free
Yes
Height
17.5 mm
Mounting type
Direct mounting
Number of poles
12
Depth
129.6 mm
Transparent
No
