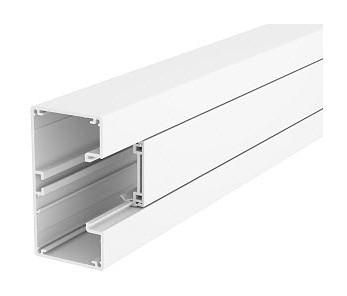

Aluminium device installation duct consisting entirely of upper and lower sections. The lower part has no holes in the bottom.
| Property | Value |
| Width: | 100 mm |
| Length: | 2000 mm |
| Depth: | 53 mm |
| Color: | white |
| RAL number: | 9010 |
| Material: | Aluminium |
| Halogen-free: | yes |
| Rectangular design: | yes |
| Number of top parts: | 1 |
| Top part width 1: | 45 mm |
| Symmetrical: | yes |
| Rear wall design (inside): | continuous C-profile |
| With protective film: | yes |
| Number of plug-in partitions: | 1 |
| With channel connector: | no |
| Mounting holes in the base: | no |
| Mounting type of top parts: | internal |
| With cable retaining clip: | no |
| Top parts included: | yes |
| Antibacterial treatment: | no |
| Protection class (IP): | IP30 |
| Impact resistance: | IK10 |
| Operating temperature: | -15 to 60 °C |
Features
HAB
GA-53100RW Rapid 45-2 1-track aluminum
Minimal order
8 meters
Manufacturer
HAN
6112400
GTIN
4012196417902
Antibacterial treatment
No
Width
100 mm
Operating temperature
-15 to 60 °C
Color
Halogen free
Yes
Length
2000 mm
RAL number
9010
Impact resistance
IK10
IP protection)
IP30
Depth
53 mm
Material
Aluminum
