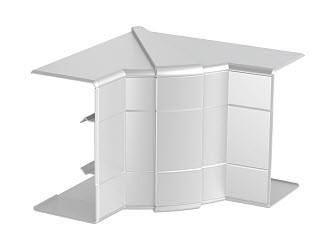

Inner corner for changing the direction of Rapid 45-2 device installation ducts. The molded parts are variably adjustable from 83° - 97°.
| Property | Value |
| Depth: | 53 mm |
| Width: | 100 mm |
| Color: | Aluminium |
| Design: | Hood molded part |
| Shape: | symmetrical |
| Number of upper parts: | 1 |
| Angle: | 83 to 97 ° |
| Material: | Plastic |
| Material quality: | other |
| Halogen-free: | yes |
| With protective film: | no |
| With channel connector: | no |
| Mounting holes in the base: | no |
| Mounting type of upper parts: | overlapping |
| With cable retaining clip: | no |
| Antibacterial treatment: | no |
| Protection class (IP): | IP40 |
| Impact resistance: | IK08 |
| Operating temperature: | -15 to 60 °C |
Features
HAB
GK-IH53100AL variable
Manufacturer
HAN
6113074
GTIN
4012196418015
Antibacterial treatment
No
Version
Hood molding
Width
100 mm
Operating temperature
-15 to 60 °C
Color
Shape
Symmetrical
Halogen free
Yes
Impact resistance
IK08
IP protection)
IP40
Depth
53 mm
Material
Plastic
Material quality
Other
