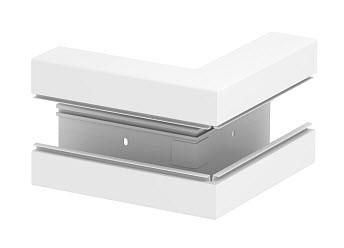

Outside corner made of halogen-free PC/ABS for changing the direction of the GKH device installation channels.
| Property | Value |
| Width: | 170 mm |
| Depth: | 70 mm |
| Color: | white |
| RAL number: | 9010 |
| Design: | Lower part |
| Material: | Plastic |
| Halogen-free: | yes |
| Angle: | 90 ° |
| Top width 1: | 76.5 mm |
| Symmetrical: | yes |
| Material quality: | other |
| With protective film: | yes |
| With channel connector: | no |
| Mounting holes in the base: | yes |
| Mounting type of top parts: | internal |
| With cable retaining clip: | no |
| Antibacterial treatment: | no |
| Protection class (IP): | IP30 |
| Impact resistance: | IK08 |
| Operating temperature: | -15 to 90 °C |
Features
HAB
GKH-A70170RW halogen-free pure white
Manufacturer
HAN
6114320
GTIN
4012196451197
Antibacterial treatment
No
Version
Bottom part
Width
170 mm
Operating temperature
-15 to 90 °C
Color
Halogen free
Yes
RAL number
9010
Impact resistance
IK08
IP protection)
IP30
Depth
70 mm
Material
Plastic
Material quality
Other
