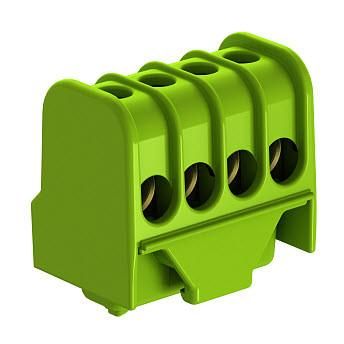

Protective conductor connection terminal, terminal block made of brass, screws made of steel, galvanized and transparently passivated, nominal cross section 6 16 mm, nominal voltage 400 V, 1-pole, with socket terminals, max. connectable conductors per terminal point max. 4x16mm, 4x10mm, 8x6mm or 12x4mm.
| Property | Value |
| Number of poles: | 1 |
| Rated voltage: | 400 V |
| Material of the insulating body: | Thermoplastic |
| Rated current In: | 76 A |
| Color: | green |
| QS single-wire: | 4 to 16 mm² |
| Mounting type: | other |
| Design of electrical connection 1: | screw connection |
| Number of terminal points per pole: | 1 |
Features
HAB
KL-DBS4x16GN with screw contacts
Minimal order
10 pcs
Manufacturer
HAN
2016250
GTIN
4012196474219
Rated voltage
400V
Rated current In
76 A
Color
Mounting type
Other
Number of poles
1
