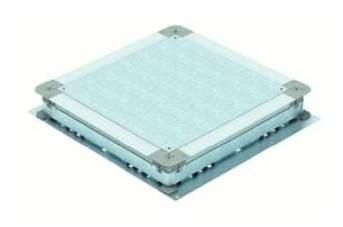

Underfloor junction and junction box for screed-covered underfloor installation systems with internal, stepless height adjustment from 165 to 220 mm. Underfloor box can be decoupled after screed has been laid. Side walls made of metal with prefabricated inlet openings for underfloor installation ducts. With protective assembly cover.
| Property | Value |
| Suitable for screed-flush, closed underfloor duct: | no |
| Suitable for screed-covered underfloor duct: | yes |
| Duct width: | 190 to 350 mm |
| Duct height: | 28 to 48 mm |
| Min. Screed height: | 165 mm |
| Side wall material: | steel |
| Nominal size: | 350 mm |
| Leveling range: | 165 to 220 mm |
| Installation opening for floor tank: | no |
| Suitable for seal installation: | yes |
| Bottom plate: | yes |
