Description

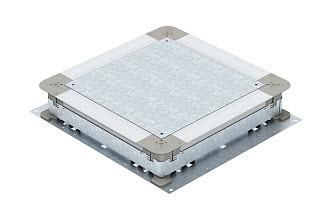

Underfloor junction and junction box for screed-covered underfloor installation systems with internal, stepless height adjustment from 70 to 125 mm. Underfloor box can be decoupled after screed has been laid. Side walls made of metal with prefabricated inlet openings for underfloor installation ducts. With protective assembly cover.
| Property | Value |
| Suitable for screed-flush, closed underfloor duct: | no |
| Suitable for screed-covered underfloor duct: | yes |
| Duct width: | 190 to 250 mm |
| Duct height: | 28 to 48 mm |
| Min. Screed height: | 70 mm |
| Side wall material: | steel |
| Nominal size: | 250 mm |
| Leveling range: | 70 to 125 mm |
| Installation opening for floor tank: | no |
| Suitable for seal installation: | yes |
| Bottom plate: | yes |
