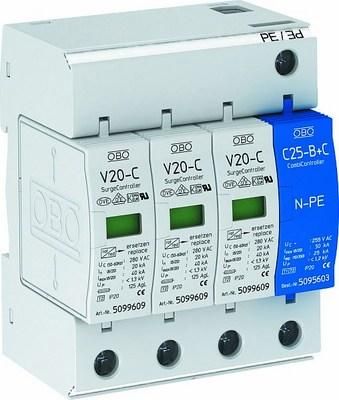

Surge arrester V20-C type 2 according to EN 61643-11 (class C according to 0675), 3-pole for TN-C or 4-pole (3+NPE) for TN-S and TT networks. Ready-to-connect arrester, plug-in complete unit with thermal and dynamic disconnection device and optical function display. Multibase lower section with double terminals for conductors and comb busbar. Version -FS with integrated potential-free remote signaling contact. Protection level < 1.4 kV, max. required backup fuse 125 A. Encapsulated, non-blow-out varistor arrester or spark gap. 5 year warranty
| Property | Value |
| Protection level: | 1.3 kV |
| Nominal discharge current (8/20): | 20 kA |
| Highest continuous voltage AC: | 280 V |
| Nominal voltage AC: | 230 V |
| Mounting type: | DIN rail TH35 |
| Size: | 4 TE |
| Signaling on the device: | optical |
| Max. conductor cross-section rigid (single/multi-wire): | 35 mm² |
| Integrated backup fuse: | no |
| Protection class (IP): | IP20 |
| Max. discharge current (8/20): | 40 kA |
Features
Max. conductor cross-section rigid (single/multi-wire)
35 mm²
Protection level
1.3 kV
Max. discharge current (8/20)
40 kA
Integrated backup fuse
No
HAB
V 20-C/3+NPE-280 3+NPE Type2
Manufacturer
HAN
5094656
GTIN
4012195240099
Size
4 HP
Highest continuous voltage AC
280V
Mounting type
DIN rail TH35
Nominal discharge current (8/20)
20kA
Nominal voltage AC
230V
IP protection)
IP20
Signaling on the device
Optical
