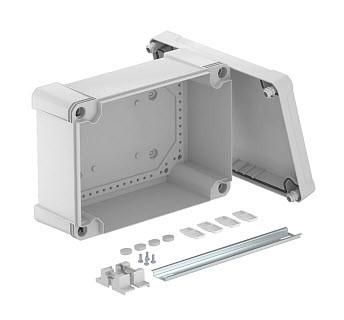

Robust empty housing from the X series for creating individual electrical installations. They are suitable for indoor and outdoor use. When used in unprotected outdoor areas, the cable junction box must be protected against direct weather influences (e.g. snow, wind, rain or sun). The cable junction box is tested according to DIN EN 60670-1,0606-1:2014 (EN 60670-1:2005 + Cor.:2007 + Cor.:2010 + A1:2013) and DIN EN 60670-22,0606-22:2007 (EN 60670-22:2006). The cable junction box meets the requirements of the protection class test according to IP 67 according to DIN EN 60529, VDE0470-1:2014 (EN 60529/AC:2016). With top hat rail type 2069 and fastening set.
| Property | Value |
| Width: | 202 mm |
| Length: | 286 mm |
| Depth: | 126 mm |
| Color: | gray |
| Protection class (IP): | IP67 |
| Material: | plastic |
| Weatherproof: | yes |
| Operating temperature: | -25 to 65 °C |
Features
HAB
X25C R LGR with rail 286x202 light grey
Manufacturer
HAN
2005502
GTIN
4012196582884
Width
202 mm
Operating temperature
-25 to 65 °C
Color
Length
286 mm
IP protection)
IP67
Depth
126 mm
Material
Plastic
