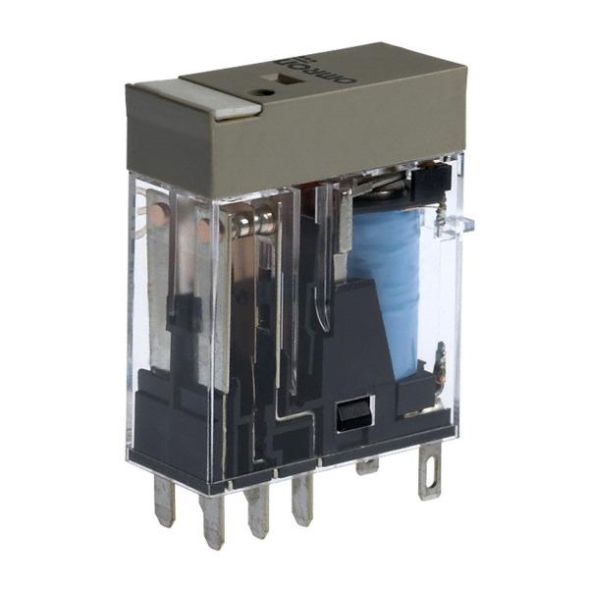

Industrial relay, - power relay, 8mm clearance and creepage distance, - 2 changeover contacts, 30VDC, 250VAC / 5A, - LED, protective diode, - mechanical switch position indicator, - labeling plate, - pinning: industry standard (no PCB), - RoHS compliant, - LR, IEC/VDE, UL, CSA
| Property | Value |
| Number of contacts as changeover contacts: | 2 |
| Rated control supply voltage Us at DC: | 10.8 to 13.2 V |
| Type of voltage for actuation: | DC |
| Design of the electrical Connection: | Plug connection |
| Drive, polarity: | polarized |
| Height: | 29.0 mm |
| Width: | 13.0 mm |
| Depth: | 35.5 mm |
| Switching behavior of the drive: | monostable |
| Type of switching contact: | Single contact |
| With positively guided contacts: | no |
| With removable terminals: | no |
| Complete device with base: | no |
| Protection class (IP): | other |
| Rated current: | 5 A |
| With LED display: | yes |
Features
Complete device with base
No
Drive, polarity
Polarized
Type of switching contact
Single contact
Switching behavior of the drive
Monostable
With positively guided contacts
No
HAB
G2R-2-SND DC12 (S)
Manufacturer
HAN
125377
GTIN
4536854936982
Number of contacts as changeover
2
Design of the electrical connection
Plug connection
Rated control supply voltage Us at DC
10.8 to 13.2 V
Width
13.0 mm
Height
29.0 mm
With LED display
Yes
With removable clamps
No
Rated current
5A
IP protection)
Other
Voltage type for actuation
DC
Depth
35.5 mm
