Industrial relay, - power relay, 8mm clearance and creepage distance, - 1 changeover contact, 30VDC, 250VAC / 10A, - LED, test button: momentary, latching, - Mech. switch position indicator, - label, - pinning: industry standard (no PCB), - RoHS compliant, - LR, IEC/VDE, UL, CSA
| Property | Value |
| Number of contacts as changeover contact: | 1 |
| Rated control supply voltage Us at AC 50 Hz: | 207 to 253 V |
| Rated control supply voltage Us at AC 60 Hz: | 207 to 253 V |
| Voltage type for actuation: | AC |
| Design of the electrical connection: | Plug connection |
| Drive, polarity: | unpolarized |
| Height: | 29.0 mm |
| Width: | 13.0 mm |
| Depth: | 35.5 mm |
| Switching behavior of the drive: | monostable |
| Type of Switching contact: | Single contact |
| With positively guided contacts: | no |
| With removable terminals: | no |
| Complete device with base: | no |
| Protection class (IP): | other |
| Rated current: | 10 A |
| With LED display: | yes |
Features
Complete device with base
No
Drive, polarity
Unpolarized
Type of switching contact
Single contact
Switching behavior of the drive
Monostable
With positively guided contacts
No
HAB

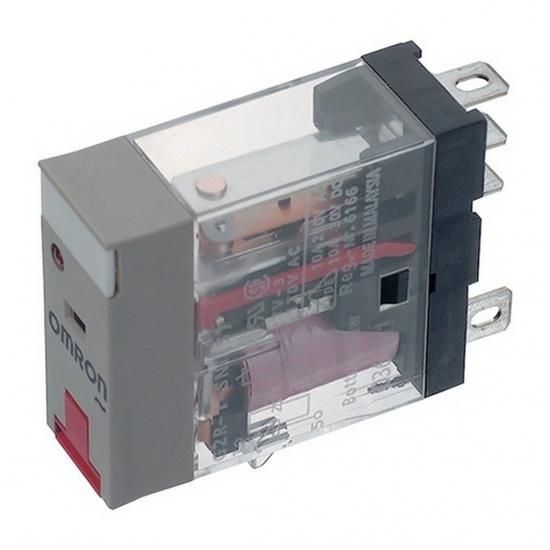

G2R-1-SNI 230AC (S) 1 changeover contact 230V AC
Manufacturer
HAN
152248
GTIN
4536854936692
Number of contacts as changeover
1
Design of the electrical connection
Plug connection
Rated control supply voltage Us at AC 50 Hz
207 to 253 V
Rated control supply voltage Us at AC 60 Hz
207 to 253 V
Width
13.0 mm
Height
29.0 mm
With LED display
Yes
With removable clamps
No
Rated current
10A
IP protection)
Other
Voltage type for actuation
AC
Depth
35.5 mm
