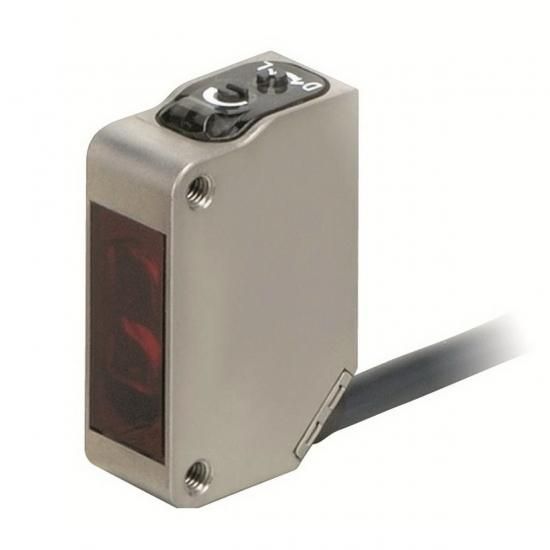

Photo switch, - one-way light barrier, range 20m, - SUS-316L housing, cuboid 21x11x32mm, - IR 860nm, 1ms, 10..30VDC, NPN, LON/DON, - 2m PVC cable, - ideal for food & pharmaceuticals, - highest resistance to cleaning agents, - protection class: IP67/IP69k, Ecolab, - approvals: UL, CE, ROHS
| Property | Value |
| Detecting range: | 5 to 1000 mm |
| Rated control supply voltage Us at DC: | 10 to 30 V |
| Max. Output current: | 100 mA |
| Button function: | light/dark switching |
| Protection class (IP): | IP67 |
| Length of sensor: | 21 mm |
| Width of sensor: | 10.8 mm |
| Height of sensor: | 32.2 mm |
| With analog communication interface: | no |
| With RS-422 communication interface: | no |
| Max. Sensing distance: | 1000 mm |
| Max. Output current at the safe output: | 100 mA |
| Response time: | 1 ms |
| Reflector included in delivery: | no |
| Analog output -10 V ... +10 V: | no |
| With Ethernet communication interface: | no |
| Analog output 0 mA ... 20 mA: | no |
| With SSD communication interface: | no |
| AWG number: | 24 |
| With other analog output: | no |
| Safety type according to IEC 61496-1: | 1 |
| With communication interface SSI: | no |
| With monitoring function of downstream devices: | no |
| Analog output 0 V ... 10 V: | no |
| Wavelength of the sensor: | 860 nm |
| With communication interface RS-232: | no |
| With communication interface AS-Interface: | no |
| Number of semiconductor outputs with signaling function: | 1 |
| With restart lock: | no |
| Analog output 4 mA ... 20 mA: | no |
| With communication interface PROFIBUS: | no |
| With communication interface RS-485: | no |
| With communication interface DeviceNet: | no |
| With communication interface INTERBUS: | no |
| Design of the interface for safety-related communication: | other |
| With communication interface CANOpen: | no |
| Suitable for safety functions: | no |
| Design of the electrical connection: | cable |
| Design of the switching output: | NPN |
| Design of the switching function: | normally open (NO) |
| Equipment protection class: | Protection class 0 |
| Setting method: | manual setting |
| Explosion protection category for gas: | without |
| Explosion protection category for dust: | without |
| Housing design: | Cuboid |
| Laser protection class: | without |
| Light type: | Infrared light |
| Switching frequency: | 1000 Hz |
| Type of voltage: | DC |
| Ambient temperature: | -25 to 55 °C |
| Pre-failure warning: | no |
| Material of the optical surface: | Plastic |
| Material of the housing: | Metal |
| Material of the cable sheath: | Polyvinyl chloride (PVC) |
| With time function: | no |
| Protection class (NEMA): | other |
Features
Design of the switching function
Normally open (NO)
Switching frequency
1000 Hz
HAB
E3ZM-D62 2M
Manufacturer
HAN
223465
GTIN
4547648235587
Design of the interface for safety-related communication
Other
Design of the switching output
NPN
Design of the electrical connection
Cable
Rated control supply voltage Us at DC
10 to 30 V
Width of the sensor
10.8 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Suitable for security functions
No
Housing design
Cuboid
Height of the sensor
32.2 mm
Length of the sensor
21 mm
IP protection)
IP67
Protection class (NEMA)
Other
Voltage type
DC
Ambient temperature
-25 to 55 °C
Housing material
Metal
