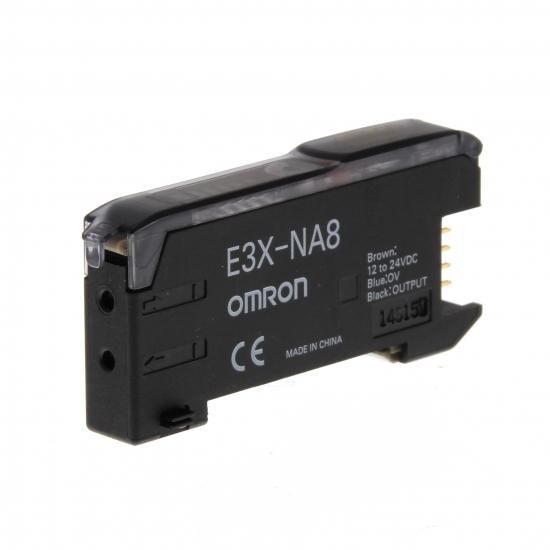

Photo switch, - fiber optic amplifier with bar display
| Property | Value |
| Number of semiconductor outputs with signaling function: | 1 |
| Switching frequency: | 2500 Hz |
| Design of the electrical connection: | Plug connection |
| Height of the amplifier: | 31.5 mm |
| No-load current: | 35 mA |
| Equipment protection class: | Protection class 0 |
| Ambient temperature: | -25 to 55 °C |
| Setting method: | manual setting |
| Length of amplifier: | 67.3 mm |
| Laser protection class: | other |
| Number of contact outputs with signaling function: | 1 |
| Protection class (IP): | IP50 |
| With time function: | yes |
| Light type: | Red light unpolarized |
| Analog output 0 mA ... 20 mA: | no |
| Cable sheath material: | other |
| Type of voltage: | DC |
| Rated control supply voltage Us at DC: | 12 to 24 V |
| Width of amplifier: | 10 mm |
| Design of switching output: | NPN |
| AWG number: | 24 |
| Housing material: | Plastic |
| Max. Output current: | 50 mA |
| Switching function design: | programmable/configurable |
| With blanking function: | no |
| Analog output 0 V ... 10 V: | no |
| Analog output -10 V ... +10 V: | no |
| Material of the fiber optic core: | plastic |
| Housing design: | cuboid |
| Analog output 4 mA ... 20 mA: | no |
| Display: | Bar display |
Features
Design of the switching function
Programmable/configurable
Switching frequency
2500 Hz
HAB
E3X-NA6 OMS
Manufacturer
HAN
239769
GTIN
4547648358798
Design of the switching output
NPN
Design of the electrical connection
Plug connection
Rated control supply voltage Us at DC
12 to 24 V
Housing design
Cuboid
IP protection)
IP50
Voltage type
DC
Ambient temperature
-25 to 55 °C
Housing material
Plastic
