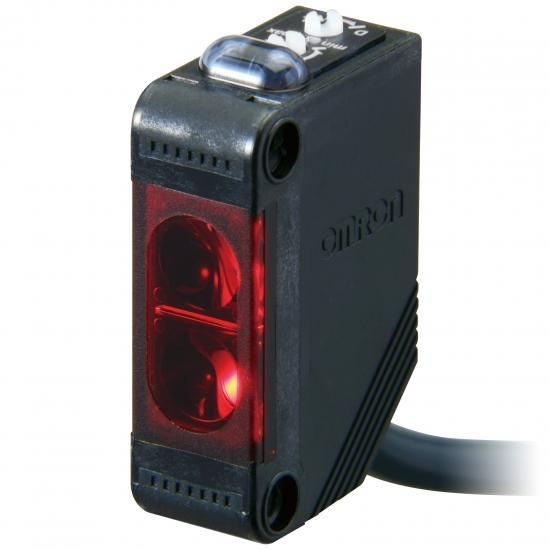

Photo switch, - reflection light barrier, range 4m, - PBT housing, cuboid 20x11x31mm, - red 680nm, 1ms, 10..30VDC, PNP, LON/DON, - 5m PVC cable, - protection class: IP67/IP69k, - approvals: UL, CE
| Property | Value |
| Rated switching distance: | 4000 mm |
| Max. switching distance: | 4000 mm |
| Min. reflector distance: | 100 mm |
| Max. Output current: | 100 mA |
| Rated control supply voltage Us at DC: | 12 to 24 V |
| Button function: | light/dark switching |
| Protection class (IP): | IP67 |
| Height of sensor: | 31 mm |
| Width of sensor: | 10.8 mm |
| Length of sensor: | 20 mm |
| Reaction time: | 1 ms |
| Switching frequency: | 1000 Hz |
| Laser protection class: | without |
| Type of voltage: | DC |
| Material of the housing: | Plastic |
| With communication interface SSI: | no |
| With communication interface AS-Interface: | no |
| With time function: | no |
| With communication interface DeviceNet: | no |
| Switching function execution: | programmable/configurable |
| With INTERBUS communication interface: | no |
| With analog communication interface: | no |
| With Ethernet communication interface: | no |
| Analog output 4 mA ... 20 mA: | no |
| With other analog output: | no |
| With PROFIBUS communication interface: | no |
| Reflector included in delivery: | no |
| Suitable for safety functions: | no |
| Analog output 0 mA ... 20 mA: | no |
| Analog output -10 V ... +10 V: | no |
| With communication interface SSD: | no |
| With communication interface CANOpen: | no |
| With communication interface RS-485: | no |
| Analog output 0 V ... 10 V: | no |
| Light type: | polarized red light |
| Material of the optical surface: | plastic |
| With RS-422 communication interface: | no |
| Setting method: | manual setting |
| With RS-232 communication interface: | no |
| Number of semiconductor outputs with signaling function: | 1 |
| Design of the interface for safety-related communication: | other |
| Design of the electrical connection: | Cable |
| Design of the switching output: | PNP |
| Equipment protection class: | Protection class 0 |
| Explosion protection category for gas: | without |
| Explosion protection category for dust: | without |
| Housing design: | Cuboid |
| Ambient temperature: | -25 to 50 °C |
| Safety type according to IEC 61496-1: | 1 |
| With monitoring function of downstream devices: | no |
| Pre-failure warning: | no |
| Wavelength of the sensor: | 680 nm |
| With restart lock: | no |
| Protection class (NEMA): | other |
Features
Design of the switching function
Programmable/configurable
Switching frequency
1000 Hz
HAB
E3Z-R81 5M OM
Manufacturer
HAN
241528
GTIN
4547648287159
Design of the interface for safety-related communication
Other
Design of the switching output
PNP
Design of the electrical connection
Cable
Rated control supply voltage Us at DC
12 to 24 V
Width of the sensor
10.8 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Suitable for security functions
No
Housing design
Cuboid
Height of the sensor
31 mm
Length of the sensor
20 mm
IP protection)
IP67
Protection class (NEMA)
Other
Voltage type
DC
Ambient temperature
-25 to 50 °C
Housing material
Plastic
