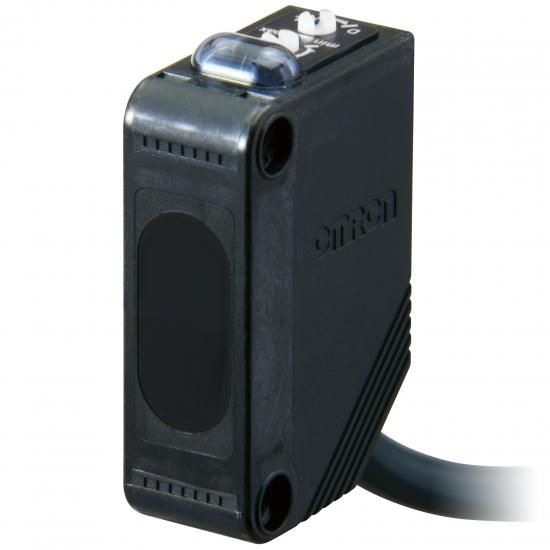

Photo switch - Diffuse light sensor, scanning range 1000mm - PBT housing, cuboid 20x11x31mm - IR 860nm, 1ms, 10..30VDC, PNP, LON/DON - 5m PVC cable - Protection class: IP67/IP69k - Approvals: UL, CE
| Property | Value |
| Scanning range: | 5 to 1000 mm |
| Rated control supply voltage Us at DC: | 10 to 30 V |
| Max. Output current: | 100 mA |
| Button function: | light/dark switching |
| Protection class (IP): | IP67 |
| Length of sensor: | 20 mm |
| Width of sensor: | 10.8 mm |
| Height of sensor: | 31 mm |
| With analog communication interface: | no |
| With RS-422 communication interface: | no |
| Max. Sensing distance: | 1000 mm |
| Max. Output current at the safe output: | 100 mA |
| Response time: | 1 ms |
| Reflector included in delivery: | no |
| Analog output -10 V ... +10 V: | no |
| With Ethernet communication interface: | no |
| Analog output 0 mA ... 20 mA: | no |
| With SSD communication interface: | no |
| AWG number: | 24 |
| With other analog output: | no |
| Safety type according to IEC 61496-1: | 1 |
| With communication interface SSI: | no |
| With monitoring function of downstream devices: | no |
| Analog output 0 V ... 10 V: | no |
| Wavelength of the sensor: | 860 nm |
| With communication interface RS-232: | no |
| With communication interface AS-Interface: | no |
| Number of semiconductor outputs with signaling function: | 1 |
| With restart lock: | no |
| Analog output 4 mA ... 20 mA: | no |
| With communication interface PROFIBUS: | no |
| With communication interface RS-485: | no |
| With communication interface DeviceNet: | no |
| With communication interface INTERBUS: | no |
| Design of the interface for safety-related communication: | other |
| With communication interface CANOpen: | no |
| Suitable for safety functions: | no |
| Design of the electrical connection: | cable |
| Design of the switching output: | PNP |
| Design of the switching function: | other |
| Equipment protection class: | Protection class 0 |
| Setting method: | manual setting |
| Explosion protection category for gas: | without |
| Explosion protection category for dust: | without |
| Housing design: | Cuboid |
| Laser protection class: | without |
| Light type: | Infrared light |
| Switching frequency: | 1000 Hz |
| Voltage type: | DC |
| Ambient temperature: | -25 to 55 °C |
| Pre-failure warning: | no |
| Material of the optical surface: | Plastic |
| Material of the housing: | Plastic |
| Material of the cable sheath: | Polyvinyl chloride (PVC) |
| With time function: | no |
| Protection class (NEMA): | other |
Features
Design of the switching function
Other
Switching frequency
1000 Hz
HAB
E3Z-D82 5M OM
Manufacturer
HAN
241531
GTIN
4547648287197
Design of the interface for safety-related communication
Other
Design of the switching output
PNP
Design of the electrical connection
Cable
Rated control supply voltage Us at DC
10 to 30 V
Width of the sensor
10.8 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Suitable for security functions
No
Housing design
Cuboid
Height of the sensor
31 mm
Length of the sensor
20 mm
IP protection)
IP67
Protection class (NEMA)
Other
Voltage type
DC
Ambient temperature
-25 to 55 °C
Housing material
Plastic
