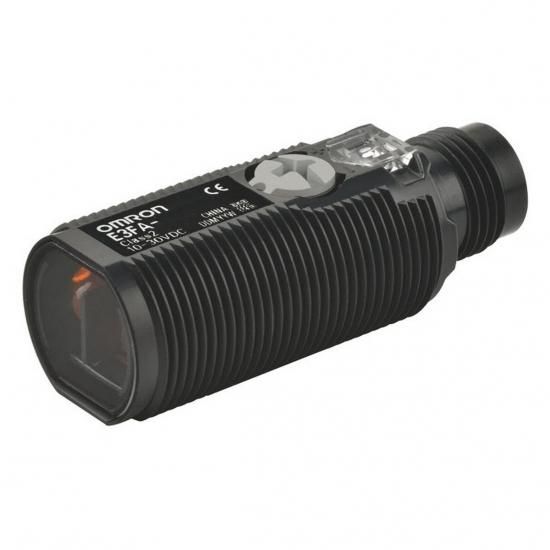

Photo switch, - PRO line, - button, range 300mm, - M18 plastic housing, protection class IP69k, - light/dark switching via wiring, - PNP, M12 connector 4-pin
| Property | Value |
| Detecting range: | 5 to 300 mm |
| Rated control supply voltage Us at DC: | 10 to 30 V |
| Max. Output current: | 100 mA |
| Button function: | light/dark switching |
| Protection class (IP): | IP67 |
| Length of sensor: | 45 mm |
| Width of sensor: | 15 mm |
| Height of sensor: | 18 mm |
| Diameter of sensor: | 18 mm |
| With analog communication interface: | no |
| With communication interface RS-422: | no |
| Max. switching distance: | 300 mm |
| Max. Output current at the safe output: | 100 mA |
| Response time: | 0.5 ms |
| Reflector included in delivery: | no |
| Analog output -10 V ... +10 V: | no |
| With Ethernet communication interface: | no |
| Analog output 0 mA ... 20 mA: | no |
| With SSD communication interface: | no |
| AWG number: | 23 |
| With other analog output: | no |
| Safety type according to IEC 61496-1: | 1 |
| With communication interface SSI: | no |
| With monitoring function of downstream devices: | no |
| Analog output 0 V ... 10 V: | no |
| Wavelength of the sensor: | 624 nm |
| With communication interface RS-232: | no |
| With communication interface AS-Interface: | no |
| Number of semiconductor outputs with signaling function: | 1 |
| With restart lock: | no |
| Analog output 4 mA ... 20 mA: | no |
| With communication interface PROFIBUS: | no |
| With communication interface RS-485: | no |
| With communication interface DeviceNet: | no |
| With communication interface INTERBUS: | no |
| Design of the interface for safety-related communication: | other |
| With communication interface CANOpen: | no |
| Suitable for safety functions: | no |
| Design of the electrical connection: | M12 connector |
| Design of the switching output: | PNP |
| Design of the switching function: | programmable/configurable |
| Equipment protection class: | Protection class 0 |
| Setting method: | manual setting |
| Explosion protection category for gas: | without |
| Explosion protection category for dust: | without |
| Housing design: | Cylinder, thread |
| Laser protection class: | without |
| Light type: | Red light unpolarized |
| Light spot: | 2000 mm² |
| Switching frequency: | 2000 Hz |
| Voltage type: | DC |
| Ambient temperature: | -25 to 55 °C |
| Pre-failure warning: | no |
| Material of the optical surface: | Plastic |
| Material of the housing: | Plastic |
| Material of the cable sheath: | other |
| With time function: | no |
| Protection class (NEMA): | other |
Features
Diameter of the sensor
18 mm
Design of the switching function
Programmable/configurable
Switching frequency
2000 Hz
HAB
E3FA-DP22OMI
Manufacturer
HAN
378883
GTIN
4548583440906
Design of the interface for safety-related communication
Other
Design of the switching output
PNP
Design of the electrical connection
Connector M12
Rated control supply voltage Us at DC
10 to 30 V
Width of the sensor
15 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Suitable for security functions
No
Housing design
Cylinder, thread
Height of the sensor
18 mm
Length of the sensor
45 mm
IP protection)
IP67
Protection class (NEMA)
Other
Voltage type
DC
Ambient temperature
-25 to 55 °C
Housing material
Plastic
