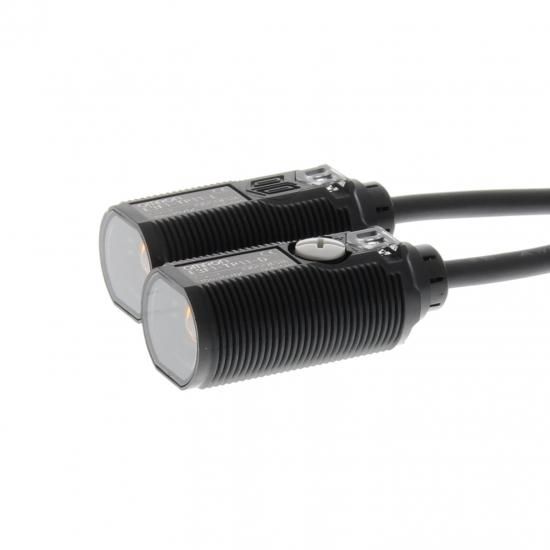

Photoelectric sensor, M18, axial, plastic housing, red LED, through beam, 15 m, NPN, L-ON/D-ON selectable, 2 m cable
| Property | Value |
| Range of the protective field: | 15 m |
| Design of the switching output: | NPN |
| Rated switching distance: | 15000 mm |
| Rated control supply voltage Us at DC: | 10 to 30 V |
| Max. Output current: | 100 mA |
| Button function: | light/dark switching |
| Protection class (IP): | IP64 |
| Length of sensor: | 41 mm |
| Width of sensor: | 18 mm |
| Height of sensor: | 18 mm |
| Diameter of sensor: | 18 mm |
| Design of interface for safety-related communication: | other |
| Explosion protection category for gas: | without |
| Design of the electrical connection: | cable |
| Laser protection class: | without |
| With communication interface INTERBUS: | no |
| With communication interface RS-485: | no |
| With communication interface Ethernet: | no |
| Reflector included in delivery: | no |
| Analog output 4 mA ... 20 mA: | no |
| Housing design: | Smooth cylinder |
| AWG number: | 26 |
| With SSD communication interface: | no |
| Pre-failure message: | no |
| With CANOpen communication interface: | no |
| With restart lock: | no |
| Analog output -10 V ... +10 V: | no |
| Material of the housing: | Plastic |
| Analog output 0 V ... 10 V: | no |
| Light type: | Red light unpolarized |
| With analog communication interface: | no |
| With PROFIBUS communication interface: | no |
| Design of the switching function: | Normally open (NO) |
| Safety type according to IEC 61496-1: | 1 |
| Explosion protection category for dust: | without |
| Opening angle: | 2 ° |
| Material of the optical surface: | Plastic |
| Suitable for safety functions: | no |
| Analog output 0 mA ... 20 mA: | no |
| Sensor wavelength: | 624 nm |
| Equipment protection class: | Protection class 0 |
| With communication interface RS-422: | no |
| Max. Switching distance: | 15000 mm |
| Switching frequency: | 1000 Hz |
| With communication interface AS-Interface: | no |
| Response time: | 0.5 ms |
| With other analog output: | no |
| With monitoring function of downstream devices: | no |
| Scope of delivery of the one-way system: | Transmitter and receiver |
| With communication interface RS-232: | no |
| Number of semiconductor outputs with signaling function: | 1 |
| With communication interface SSI: | no |
| With communication interface DeviceNet: | no |
| Cable sheath material: | Polyvinyl chloride (PVC) |
| Ambient temperature: | -25 to 55 °C |
| Setting method: | manual setting |
| Type of voltage: | DC |
| With Time function: | no |
| Protection class (NEMA): | other |
Features
Diameter of the sensor
18 mm
Design of the switching function
Normally open (NO)
Switching frequency
1000 Hz
HAB
E3F1-TN11 2M OMI
Manufacturer
HAN
378934
GTIN
4548583441415
Design of the interface for safety-related communication
Other
Design of the switching output
NPN
Design of the electrical connection
Cable
Rated control supply voltage Us at DC
10 to 30 V
Width of the sensor
18 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Suitable for security functions
No
Housing design
Cylinder smooth
Height of the sensor
18 mm
Length of the sensor
41 mm
IP protection)
IP64
Protection class (NEMA)
Other
Voltage type
DC
Ambient temperature
-25 to 55 °C
Housing material
Plastic
