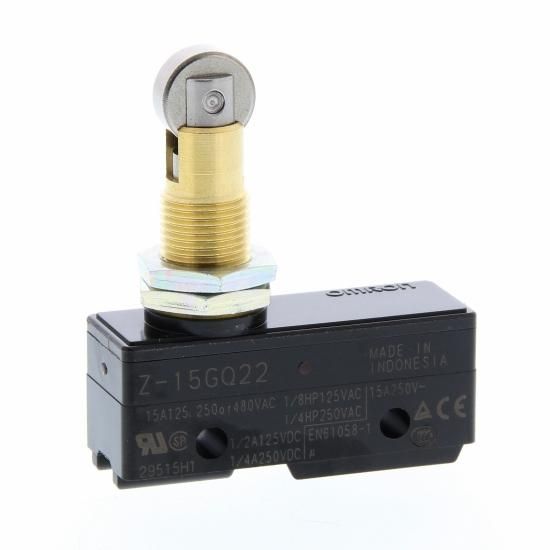

Basic position switch, roller plunger actuator, 1 changeover contact, 15 A / 250 VAC, solder connections
| Property | Value |
| Number of contacts as changeover contact: | 1 |
| Length of the sensor: | 17.45 mm |
| Width of the sensor: | 49.2 mm |
| Height of the sensor: | 56.1 mm |
| Switching function: | Snap-action switching element |
| Protection class (IP): | IP00 |
| Explosion protection category for dust: | without |
| Housing design: | Cuboid |
| Electronic output: | no |
| Suitable for safety functions: | no |
| With status display: | no |
| Design of the interface: | without |
| Design of the actuating element: | roller plunger |
| Design of the electrical connection: | other |
| Design of the interface for safety-related communication: | without |
| Ambient temperature during operation: | -25 to 80 °C |
| Forced opening: | no |
| Explosion protection category for gas: | without |
| Housing coating: | other |
| Housing material: | plastic |
| Rated operating current Ie at DC-13, 230 V: | 0.25 A |
| Rated operating current Ie at DC-13, 125 V: | 0.5 A |
| Rated operating current Ie at DC-13, 24 V: | 6 A |
| Rated operating current Ie at AC-15, 125 V: | 15 A |
| Rated operating current Ie at AC-15, 230 V: | 15 A |
| Alignment of the actuating element: | Roller plunger straight |
| Switching function latching: | no |
| Protection class (NEMA): | other |
Features
Rated operating current Ie at DC-13, 230 V
0.25 A
Rated operating current Ie at DC-13, 125 V
0.5 A
Electronic output
No
Rated operating current Ie at AC-15, 125 V
15 A
HAB
Z-15GQ22 OMI
Manufacturer
HAN
382404
GTIN
4548583364967
Number of contacts as changeover
1
Implementation of the interface
Without
Design of the interface for safety-related communication
Without
Design of the actuating element
Roller tappet
Design of the electrical connection
Other
Alignment of the actuator
Roller tappet straight
Rated operating current Ie at AC-15, 230 V
15A
Rated operating current Ie at DC-13, 24 V
6A
Housing coating
Other
Width of the sensor
49.2 mm
Explosion protection category for gas
Without
Explosion protection category for dust
Without
Suitable for security functions
No
Housing design
Cuboid
Height of the sensor
56.1 mm
Length of the sensor
17.45 mm
With status display
No
Switching function
Snap action contact
Switching function latching
No
IP protection)
IP00
Protection class (NEMA)
Other
Ambient temperature during operation
-25 to 80 °C
Housing material
Plastic
Forced opening
No
