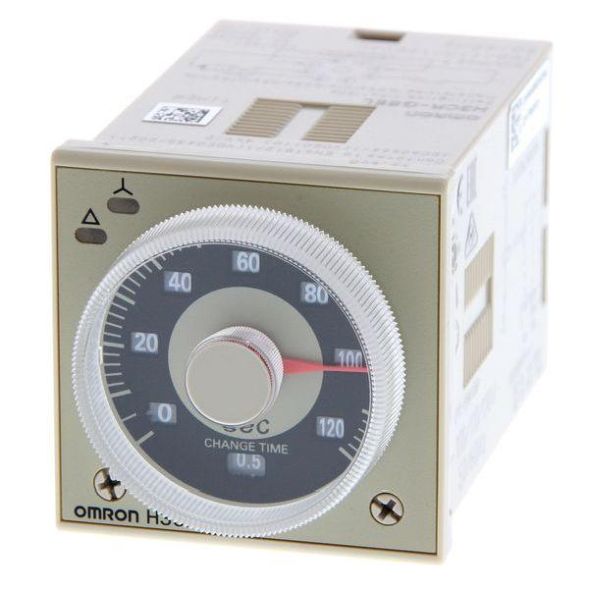

Time relay, - 8-pin round base, front dimensions: 48x48mm², - star/delta, SW: analog setting, - star: 0.5s..120s, switching: 0.05s..0.5s, - 1 time changer + 1 instantaneous contact, - IP40 (front), - LR, UL, CSA, corresponds to EN61812-1
| Property | Value |
| Number of outputs, undelayed, normally open: | 1 |
| Number of outputs, delayed, normally open: | 2 |
| Design of the electrical connection: | Plug connection |
| Can be plugged into contactor: | no |
| Outputs, switchable delayed/undelayed: | no |
| Voltage type for actuation: | AC |
| Time range: | 0.5 to 120 s |
| Rated control supply voltage Us at AC 50 Hz: | 100 to 120 V |
| Rated control supply voltage Us at AC 60 Hz: | 100 to 120 V |
| Width: | 48 mm |
| Depth: | 79.4 mm |
| Height: | 48 mm |
| With plug-in base: | no |
| Remote control possible: | no |
| Suitable as remote control: | no |
| On-delay function: | no |
| Off-delay function: | no |
| Function with flickering when switched on: | no |
| Function with flickering when switched off: | no |
| Function star/delta: | yes |
| Function pulse forming: | no |
| Function flashing starting with pause, fixed time: | no |
| Function flashing starting with pulse, fixed time: | no |
| Function clocking starting with pause, variable: | no |
| Function clocking starting with pulse, variable: | no |
| With semiconductor output: | no |
| Suitable for DIN rail mounting: | yes |
| Suitable for front mounting: | yes |
Features
HAB
H3CR-G8EL AC100-120OMI
Manufacturer
HAN
667941
GTIN
4548583552906
Design of the electrical connection
Plug connection
Rated control supply voltage Us at AC 50 Hz
100 to 120 V
Rated control supply voltage Us at AC 60 Hz
100 to 120 V
Width
48 mm
Remote control possible
No
Suitable for DIN rail mounting
Yes
Height
48 mm
Voltage type for actuation
AC
Depth
79.4 mm
