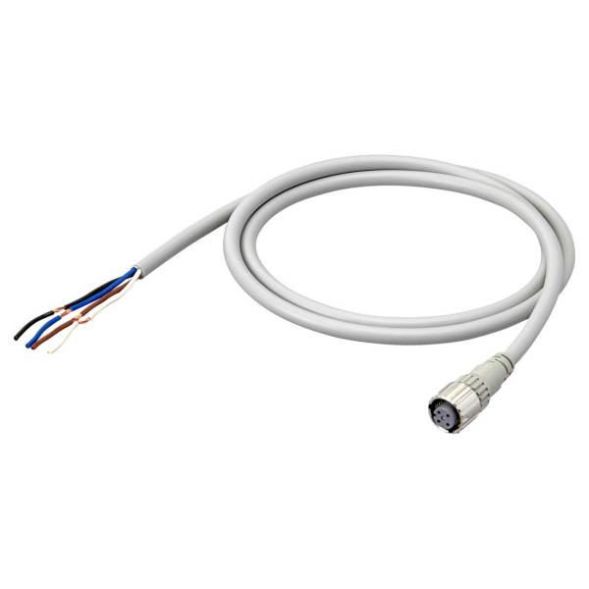

Sensors, - Sensor accessories, - Smartclick connection cable 4-pin, - IP67 waterproof, - M12 connector - female, - length 20 m
| Property | Value |
| Rated current In: | 3 A |
| Cable sheath color: | gray |
| With LED display: | no |
| Cable sheath material: | Polyvinyl chloride (PVC) |
| Contact base material: | CuZn |
| Number of poles: | 4 |
| Design of electrical connection, field side: | M12 |
| Type of plug contact, field side: | Female (socket) |
| Arrangement of cable feed, field side: | straight |
| Design of electrical connection, housing side: | free cable end |
| Type of plug contact, housing side: | Male (plug) |
| Arrangement of cable feed, housing side: | straight |
| Cable length: | 20 m |
| Halogen-free: | no |
| Shielded: | no |
| Cable design: | multi-core |
| Radiation-crosslinked: | no |
| Material of the contact coating: | Ni/Au |
| Permissible external cable temperature after installation without vibration: | -25 to 70 °C |
| Permissible Cable external temperature during assembly/handling: | -25 to 70 °C |
| Rated voltage: | 125 V |
| Voltage resistance: | 1040 mOhm |
| Protection class (IP): | IP69K |
Features
Shielded
No
HAB
XS5F-D421-L80-F
Manufacturer
HAN
669139
GTIN
4548583081857
Rated voltage
125V
Rated current In
3 A
Halogen free
No
Cable length
20m
With LED display
No
Number of poles
4
IP protection)
IP69K
