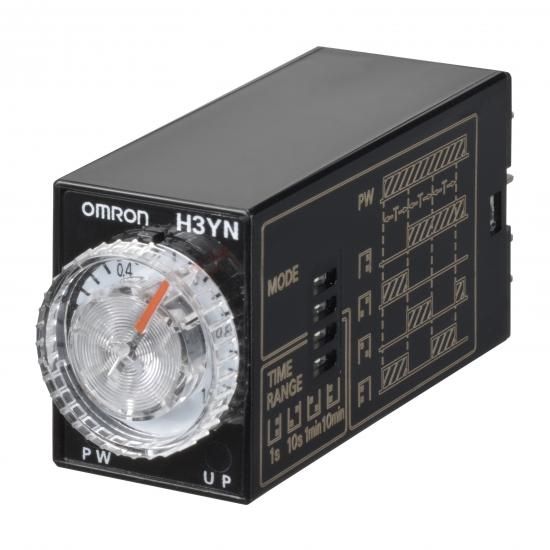

Time relay, pluggable, 8-pin, multifunction, 0.1m-10h, 2 changeover contacts, 5A, 100-110VDC control, black
| Property | Value |
| Number of outputs, delayed, normally closed: | 2 |
| Number of outputs, delayed, normally open: | 2 |
| Number of outputs, delayed, changeover: | 2 |
| Design of the electrical connection: | Plug connection |
| Can be plugged onto contactor: | no |
| Outputs, switchable delayed/undelayed: | no |
| Type of voltage for actuation: | DC |
| Time range: | 6 to 36000 s |
| Rated control supply voltage Us for DC: | 100 to 110 V |
| Width: | 21.5 mm |
| Depth: | 56.6 mm |
| Height: | 28 mm |
| With plug-in base: | yes |
| Remote control possible: | no |
| Suitable as remote control: | no |
| On-delayed function: | yes |
| Off-delayed function: | no |
| On-flicker function: | yes |
| Off-flicker function: | no |
| Star/delta function: | no |
| Pulse-forming function: | no |
| Function flashing starting with pause, fixed time: | no |
| Function flashing starting with pulse, fixed time: | no |
| Function clocking starting with pause, variable: | no |
| Function clocking starting with pulse, variable: | no |
| With semiconductor output: | no |
Features
HAB
H3YN-21-B DC100-110
Manufacturer
HAN
669622
GTIN
4548583780989
Design of the electrical connection
Plug connection
Rated control supply voltage Us at DC
100 to 110 V
Width
21.5 mm
Remote control possible
No
Height
28 mm
Voltage type for actuation
DC
Depth
56.6 mm
