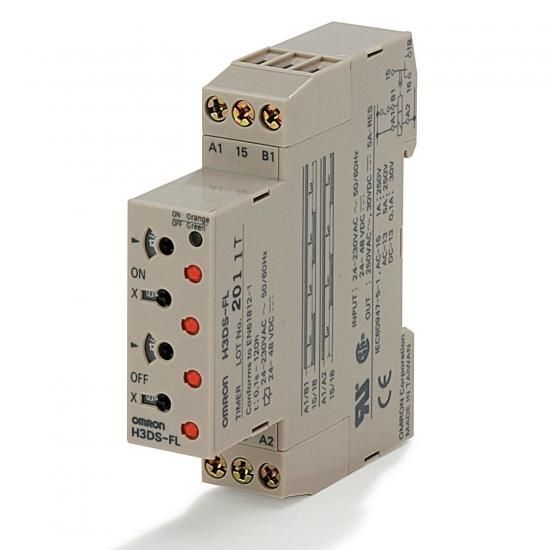

Time relay, - 17.5mm wide, lockable, screw connections, - twin timer, individual pulse/pause time, 1W, - 0.1s..12h, SW: analog setting, - 24..230VAC(50/60Hz)/24..48VDC, - IP30, terminals IP20, - UL, CSA, conforms to EN61812-1
| Property | Value |
| Number of outputs, delayed, changeover contact: | 1 |
| Design of the electrical connection: | Screw connection |
| Can be plugged onto contactor: | no |
| Outputs, switchable delayed/undelayed: | no |
| Voltage type for actuation: | AC/DC |
| Time range: | 0 to 43200 s |
| Rated control supply voltage Us at AC 50 Hz: | 24 to 230 V |
| Rated control supply voltage Us at AC 60 Hz: | 24 to 230 V |
| Rated control supply voltage Us at DC: | 24 to 48 V |
| Width: | 17.5 mm |
| Depth: | 100 mm |
| Height: | 79 mm |
| With plug-in base: | no |
| Remote control possible: | no |
| Suitable as remote control: | yes |
| On-delay function: | no |
| Off-delay function: | no |
| Function with flickering when switched on: | no |
| Function with flickering when switched off: | no |
| Function with star/delta: | no |
| Function with pulse shaping: | no |
| Function with flashing starting with pause, fixed time: | no |
| Function with flashing starting with pulse, fixed time: | no |
| Function with clocking starting with pause, variable: | no |
| Function with clocking starting with pulse starting, variable: | yes |
| With semiconductor output: | no |
Features
HAB
H3DS-FL.BY OKX OMI
Manufacturer
HAN
670935
GTIN
4548583752917
Design of the electrical connection
Screw connection
Rated control supply voltage Us at AC 50 Hz
24 to 230 V
Rated control supply voltage Us at AC 60 Hz
24 to 230 V
Rated control supply voltage Us at DC
24 to 48 V
Width
17.5 mm
Remote control possible
No
Height
79 mm
Voltage type for actuation
AC/DC
Depth
100 mm
