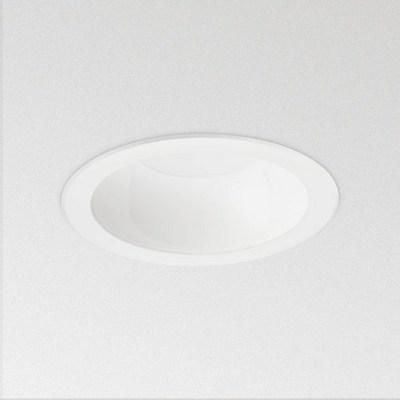

Delivers on the CoreLine promise - innovative, easy to install and high quality.The CoreLine downlight is a recessed luminaire that can be used instead of downlights with compact fluorescent lamps. Their low total cost of ownership makes it easier for customers to switch to LED. These luminaires create a natural lighting effect for general lighting applications. In addition, they enable immediate energy savings and have a significantly longer lifespan, making them an inexpensive and environmentally friendly solution. Thanks to their standard cut-out dimensions and quick-connectors, they can be installed quickly and easily. Optionally available as an Interact Ready version - with ZigBee wireless technology for networking luminaires, lamps and sensors.
| Property | Value |
| Max. System power: | 9.5 W |
| Rated luminous flux according to IEC 62722-2-1: | 1100 lm |
| Color temperature: | 4000 K |
| Nominal voltage: | 240 V |
| Protection class (IP): | IP54 |
| Socket: | without |
| With control gear: | yes |
| Beam angle: | wide beam 41-80° |
| Housing material: | aluminum |
| With Light source: | yes |
| Housing color: | multicolored |
| Installation height/depth: | 200 mm |
| Installation diameter: | 155 mm |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | yes |
| Rated service life L80/B10 at 25 °C: | 32000 h |
| Height/depth: | 100 mm |
| Protection class: | I |
| Light distribution: | symmetrical |
| Operating device: | LED operating device, current-controlled |
| Impact resistance: | IK02 |
| Light source: | LED not replaceable |
| Outer diameter: | 162 mm |
| Luminaire with limited surface temperature 'D-mark': | no |
| With motion detector: | no |
| Reflector: | white |
| Suitable for number of lamps: | 1 |
| Luminous flux: | 1100 lm |
| Cover material: | Transparent glass |
| Covering the light with thermal insulation material possible: | no |
| Voltage type: | AC |
| Light color: | white |
| Suitable for wall mounting: | no |
| Suitable for track mounting: | no |
| Adjustability: | not adjustable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for pedestal/floor mounting: | no |
| Suitable for Traverse mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | no |
| Suitable for recessed mounting: | yes |
| Suitable for cable system: | no |
| Surface: | powder-coated |
| Brushed surface: | no |
| LED nominal current at constant current: | 125 mA |
| Dimming depending on operating device: | yes |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device-integrated): | no |
| Dimming GPRS: | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Light distributor: | Reflector |
| Light emission: | direct |
| Total harmonic distortion (THD): | 0.2 |
| Rated service life L70/B10 at 25 °C: | 46000 h |
| Rated service life L70/B50 at 25 °C: | 50000 h |
| Rated service life L80/B50 at 25 °C: | 35000 h |
| Rated service life L90/B10 at 25 °C: | 16500 h |
| Rated service life L90/B50 at 25 °C: | 18000 h |
| Rated ambient temperature according to IEC62722-2-1: | 40 °C |
| Lamp luminous efficacy: | 116 lm/W |
| Luminous intensity: | 620 cd |
| Type of wiring: | suitable for through wiring |
| Power factor: | 0.95 |
| Number of poles: | 2 |
| Conductor cross-section: | 0.75 mm |
| Connectable Conductor cross-section: | 1.5 mm |
| Connection type: | Flat plug |
| Luminous efficacy: | 115 lm/W |
| Suitable for computer workstations according to EN 12464-1: | no |
| Glow wire test according to IEC 60695-2-11: | 850 °C - 30 s |
| Photobiological safety according to EN 62471: | RG1 |
| Color consistency (McAdam ellipse): | SDCM5 |
Features
Rated service life L90/B10 at 25 °C
16500 h
Connectable conductor cross-section
1.5 mm
Rated service life L70/B10 at 25 °C
46000 h
Rated service life L80/B50 at 25 °C
35000 h
HAB
DN140B LED10S 840 PSU WR IP54 PI6
Manufacturer
HAN
32597200
GTIN
8710163325972
Covering the luminaire with thermal insulation material possible
No
Connection type
Flat plug
Type of wiring
Suitable for through wiring
Beam angle
Wide beam 41-80°
Outer diameter
162 mm
Rated lifetime L70/B50 at 25 °C
50000 hours
Rated lifetime L80/B10 at 25 °C
32000 hours
Rated luminous flux according to IEC 62722-2-1
1100lm
Rated ambient temperature according to IEC62722-2-1
40°C
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
Yes
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation diameter
155 mm
Installation height/depth
200 mm
Color temperature
4000K
Color rendering index CRI
80-89
Version
Without
Suitable for surface mounting
No
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for clamp mounting
No
Suitable for number of lamps
1
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for busbar mounting
No
Suitable for truss mounting
No
Suitable for wall mounting
No
Housing color
Multicolored
Glow wire test according to IEC 60695-2-11
850 °C - 30 s
Height/Depth
100 mm
LED nominal current at constant current
125mA
Lamp luminous efficacy
116lm/W
Power factor
0.95
Conductor cross-section
0.75 mm
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
115lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
1100lm
Light intensity
620 cd
Light distributor
Reflector
Light distribution
Symmetrical
Max. system performance
9.5W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
240V
Surface
Powder coated
Brushed surface
No
Without dimming function
Yes
Photobiological safety according to EN 62471
RG1
Number of poles
2
Reflector
White
Impact resistance
IK02
Protection class
I
Voltage type
AC
Adjustability
Not adjustable
Cover material
Glass transparent
Housing material
Aluminum
