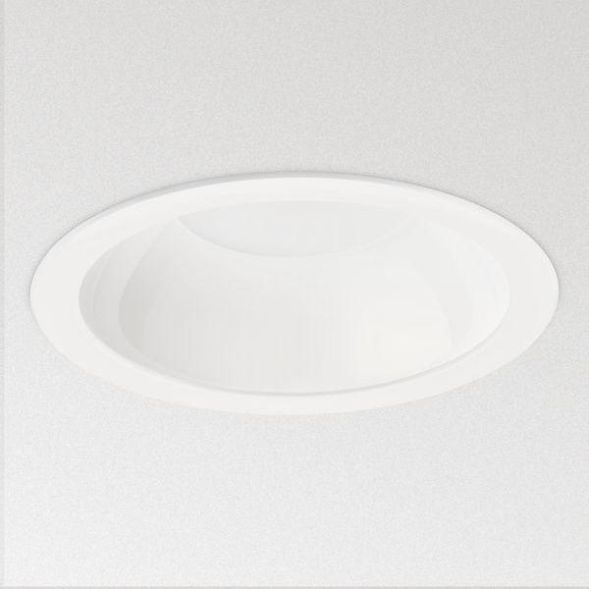

Delivers on the CoreLine promise - innovative, easy to install and high quality.The CoreLine downlight is a recessed luminaire that can be used instead of downlights with compact fluorescent lamps. Their low total cost of ownership makes it easier for customers to switch to LED. These luminaires create a natural lighting effect for general lighting applications. In addition, they enable immediate energy savings and have a significantly longer lifespan, making them an inexpensive and environmentally friendly solution. Thanks to their standard cut-out dimensions and quick-connectors, they can be installed quickly and easily. Optionally available as an Interact Ready version - with ZigBee wireless technology for networking luminaires, lamps and sensors.
Property | Value |
Max. System power: | 20.5 W |
Rated luminous flux according to IEC 62722-2-1: | 2200 lm |
Color temperature: | 4000 K |
Nominal voltage: | 240 V |
Protection class (IP): | IP54 |
Suitable for lamp power: | 20.3 W |
Socket: | without |
With control gear: | yes |
Beam angle: | wide beam 41-80° |
Material of Housing: | Aluminum |
With light source: | yes |
Housing color: | multicolored |
Installation height/depth: | 200 mm |
Installation diameter: | 200 mm |
Color rendering index CRI: | 80-89 |
Suitable for ceiling mounting: | yes |
Rated service life L80/B10 at 25 °C: | 30500 h |
Height/depth: | 108 mm |
Protection class: | I |
Light distribution: | symmetrical |
Operating device: | LED operating device, current-controlled |
Impact resistance: | IK02 |
Light source: | LED not replaceable |
Outer diameter: | 216 mm |
Luminaire with limited surface temperature 'D-mark': | no |
With motion detector: | no |
Reflector: | white |
Suitable for number of light sources: | 1 |
Luminous flux: | 2200 lm |
Cover material: | transparent glass |
Covering of the lamp with thermal insulation material possible: | no |
Voltage type: | AC/DC |
Light color: | white |
Suitable for wall mounting: | no |
Suitable for track mounting: | no |
Adjustability: | not adjustable |
Suitable for clamp mounting: | no |
Suitable for pendulum suspension: | no |
Suitable for Platform/floor mounting: | no |
Suitable for traverse mounting: | no |
With light sensor: | no |
Suitable for surface mounting: | no |
Suitable for recessed mounting: | yes |
Suitable for cable system: | no |
Surface: | powder-coated |
Brushed surface: | no |
LED nominal current at constant current: | 125 mA |
Dimming depending on operating device: | yes |
Dimming 0-10 V: | no |
Dimming 1-10 V: | no |
Dimming DALI: | yes |
Dimming DMX: | no |
Dimming DSI: | no |
Dimming potentiometer (integrated in the device): | no |
Dimming GPRS: | no |
Dimming LineSwitch: | no |
Dimming manufacturer-specific: | no |
Dimming mains voltage modulation: | no |
Dimming trailing edge: | no |
Dimming leading edge: | no |
Dimming programmable: | yes |
Dimming RF: | no |
Dimming Sine Wave Reduction: | no |
Dimming Touch and Dim: | no |
Dimming Zigbee: | no |
Dimming with push button: | no |
Without Dimming function: | yes |
Light distributor: | reflector |
Light emission: | direct |
Total harmonic distortion (THD): | 0.2 |
Rated service life L70/B10 at 25 °C: | 47000 h |
Rated service life L70/B50 at 25 °C: | 50000 h |
Rated service life L80/B50 at 25 °C: | 32500 h |
Rated service life L90/B10 at 25 °C: | 16500 h |
Rated service life L90/B50 at 25 °C: | 17500 h |
Rated ambient temperature according to IEC62722-2-1: | 40 °C |
Luminous intensity: | 1170 cd |
Type of wiring: | suitable for through wiring |
Power factor: | 0.95 |
Number of poles: | 2 |
Conductor cross-section: | 0.75 mm |
Connectable conductor cross-section: | 1.5 mm |
Connection type: | Flat plug |
Luminous efficacy: | 108 lm/W |
Suitable for computer workstations in accordance with EN 12464-1: | no |
Glow wire test in accordance with IEC 60695-2-11: | 850 °C - 30 s |
Photobiological safety in accordance with EN 62471: | RG1 |
Color consistency (McAdam ellipse): | SDCM5 |
