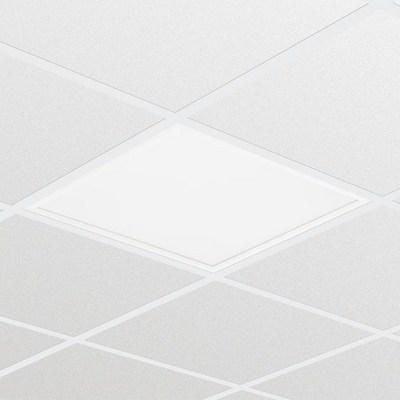

In new and renovated buildings, panel lights with a wide beam are often used. They provide high-quality lighting and save considerable energy and maintenance costs thanks to their high efficiency and service life. CoreLine Panel is available in two versions: a panel suitable for computer workstations (CDP) with integrated, wide-beam micro optics and an opal panel (NOC). The new CoreLine Panel LED inlay lights can also be used as a replacement for conventional fluorescent lamps. They are quick and easy to install. The CDP-compatible lights can also be converted to a direct-beam pendant light with an optional suspension set.
| Property | Value |
| Length: | 597 mm |
| Max. System power: | 37 W |
| Rated luminous flux according to IEC 62722-2-1: | 4300 lm |
| Color temperature: | 4000 K |
| Socket: | other |
| Housing color: | white |
| Beam angle: | extremely wide beam >,80° |
| Height/depth: | 42 mm |
| Installation width: | 597 mm |
| Light emission: | direct |
| Light distribution: | symmetrical |
| Light source: | LED not replaceable |
| With light sensor: | no |
| Protection type (IP): | IP20 |
| Protection class: | II |
| Width: | 597 mm |
| Installation height/depth: | 120 mm |
| With motion detector: | no |
| Operating device: | LED operating device, current-controlled |
| Suitable for ceiling mounting: | yes |
| Suitable for wall mounting: | no |
| Suitable for recessed mounting: | yes |
| Suitable for strip light configuration: | no |
| Suitable for pendant suspension: | yes |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Installation length: | 597 mm |
| Light color: | white |
| Type of voltage: | AC |
| With operating device: | yes |
| Material of the housing: | aluminum |
| Cover material: | Opal plastic |
| Design of the grid: | without |
| Nominal voltage: | 240 V |
| Covering of the luminaire with thermal insulation material possible: | no |
| Suitable for computer workstations in accordance with EN 12464-1: | yes |
| With light source: | yes |
| Rated ambient temperature in accordance with IEC62722-2-1: | 40 °C |
| Connection type: | Plug-in terminal |
| Color rendering index CRI: | 80-89 |
| Impact resistance: | IK02 |
| DMX dimming: | no |
| Luminaire with limited surface temperature 'D-mark': | no |
| DSI dimming: | no |
| Energy efficiency class of the permanently installed lamp: | D |
| LineSwitch dimming: | no |
| With air slots: | no |
| Potentiometer dimming (integrated in the device): | no |
| GPRS dimming: | no |
| LED nominal current at constant current: | 59.4 mA |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | yes |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | yes |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming depending on operating device: | no |
| Without dimming function: | no |
| Light distributor: | Diffuser lens/optics/panel |
| Rated service life L70/B50 at 25 °C: | 55000 h |
| Rated service life L80/B50 at 25 °C: | 35000 h |
| Rated service life L90/B50 at 25 °C: | 15000 h |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Luminaire luminous efficacy: | 116 lm/W |
| Power factor: | 0.9 |
| Type of wiring: | suitable for through wiring |
| Number of poles: | 6 |
| Conductor cross-section: | 0.75 mm |
Features
Energy efficiency class of the permanently installed light source
D
Rated service life L80/B50 at 25 °C
35000 h
HAB
RC132V LED43S 840 PSD W60L60 OC
Manufacturer
HAN
33470700
GTIN
8710163334707
Covering the luminaire with thermal insulation material possible
No
Connection type
Plug-in terminal
Type of wiring
Suitable for through wiring
Execution of the grid
Without
Beam angle
Extremely wide beam >80°
Rated lifetime L70/B50 at 25 °C
55000 hours
Rated luminous flux according to IEC 62722-2-1
4300lm
Rated ambient temperature according to IEC62722-2-1
40°C
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
Yes
Width
597 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
Yes
Dimming Zigbee
No
Dimming depends on the control gear
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Installation width
597 mm
Installation height/depth
120 mm
Installation length
597 mm
Color temperature
4000K
Color rendering index CRI
80-89
Version
Other
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for light strip configuration
No
Suitable for emergency lighting
No
Suitable for pendulum suspension
Yes
Suitable for wall mounting
No
Housing color
White
Glow wire test according to IEC 60695-2-11
650 °C - 30 s
Height/Depth
42 mm
LED nominal current at constant current
59.4mA
Power factor
0.9
Conductor cross-section
0.75 mm
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
116lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Light distributor
Diffuser lens/optics/panel
Light distribution
Symmetrical
Length
597 mm
Max. system performance
37W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
With air slots
No
Nominal voltage
240V
Without dimming function
No
Number of poles
6
Impact resistance
IK02
Protection class
II
Voltage type
AC
Cover material
Plastic opal
Housing material
Aluminum
