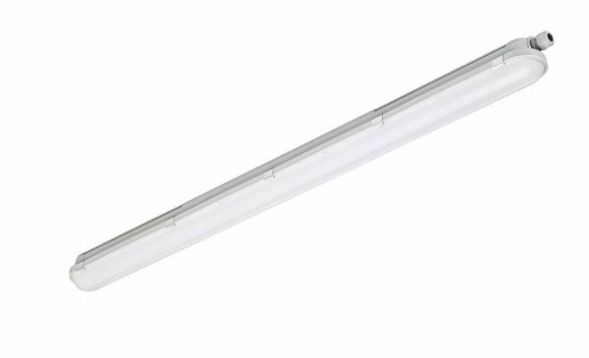

Delivers on the CoreLine promise - Innovative, easy to install and high quality.The luminaires can replace traditional fluorescent luminaires from 18W to 58W. With its sleek and more modern design, it still retains its familiar and appreciated architecture. Installation is quick and easy thanks to the thoughtful design. The CoreLine waterproof luminaire offers better light distribution for simple and effective lighting. Interact Ready luminaires with integrated wireless lighting control are also available in this range and can be used with Interact gateways, sensors and software.
| Property | Value |
| Length: | 1215 mm |
| Suitable for number of bulbs: | 1 |
| Max. System power: | 31.460000000000004 W |
| Rated luminous flux according to IEC 62722-2-1: | 3700 lm |
| Color temperature: | 4102 K |
| Socket: | other |
| Housing color: | grey |
| Beam angle: | unshielded/diffuse |
| Height/depth: | 76 mm |
| Light emission: | direct |
| Light distribution: | symmetrical |
| Light source: | LED not replaceable |
| With light sensor: | no |
| Protection class (IP) : | IP65 |
| Protection class: | I |
| Width: | 1215 mm |
| With motion detector: | no |
| Operating device: | LED operating device current-controlled |
| Suitable for ceiling mounting: | yes |
| Suitable for Wall mounting: | yes |
| Suitable for recessed mounting: | no |
| Suitable for strip light configuration: | no |
| Suitable for pendant suspension: | yes |
| Suitable for surface mounting: | yes |
| Suitable for emergency lighting: | no |
| Light color: | white |
| Voltage type: | AC |
| With operating device: | yes |
| Housing material: | plastic |
| Cover material: | plastic opal |
| Design of the grid: | without |
| Nominal voltage: | 240 V |
| Covering of the lamp with thermal insulation material possible: | yes |
| Suitable for computer workstations according to EN 12464-1: | no |
| With light source: | yes |
| Rated ambient temperature according to IEC62722-2-1: | 40 °C |
| Connection type: | Plug-in terminal |
| Color rendering index CRI: | 80-89 |
| Impact resistance: | IK08 |
| Dimming DMX: | no |
| Luminaire with limited surface temperature 'D-mark': | yes |
| Dimming DSI: | no |
| Energy efficiency class of the built-in lamp: | D |
| Dimming LineSwitch: | no |
| With air slots: | no |
| Dimming Potentiometer (integrated in device): | no |
| Dimming GPRS: | no |
| LED nominal current at constant current: | 378 mA |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming manufacturer-specific: | no |
| Dimming DALI: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Dimming dependent on operating device: | no |
| Without dimming function: | yes |
| Light distributor: | Diffuser lens/optics/panel |
| Rated service life L70/B10 at 25 °C: | 57000 h |
| Rated service life L70/B50 at 25 °C: | 57000 h |
| Rated service life L80/B10 at 25 °C: | 35000 h |
| Rated service life L80/B50 at 25 °C: | 47000 h |
| Rated service life L90/B10 at 25 °C: | 16000 h |
| Rated service life L90/B50 at 25 °C: | 22000 h |
| Glow wire test according to IEC 60695-2-11: | 850 °C - 30 s |
| Luminaire luminous efficacy: | 130 lm/W |
| Power factor: | 0.9 |
| Wiring type: | Termination |
| Number of poles: | 3 |
| Conductor cross-section: | 0.5 mm |
Features
Energy efficiency class of the permanently installed light source
D
Rated service life L90/B10 at 25 °C
16000 h
Rated service life L70/B10 at 25 °C
57000 h
Rated service life L80/B50 at 25 °C
47000 h
HAB
WT120C G2 37S/840 PSU PCO L1200
Manufacturer
HAN
34979499
GTIN
8710163349794
Covering the luminaire with thermal insulation material possible
Yes
Connection type
Plug-in terminal
Type of wiring
Diploma
Execution of the grid
Without
Beam angle
Free-radiating/diffuse
Rated lifetime L70/B50 at 25 °C
57000 hours
Rated lifetime L80/B10 at 25 °C
35000 hours
Rated luminous flux according to IEC 62722-2-1
3700lm
Rated ambient temperature according to IEC62722-2-1
40°C
Operating device
LED control gear current controlled
Suitable for computer workstations according to EN 12464-1
No
Width
1215 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color temperature
4102 K
Color rendering index CRI
80-89
Version
Other
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
No
Suitable for number of lamps
1
Suitable for light strip configuration
No
Suitable for emergency lighting
No
Suitable for pendulum suspension
Yes
Suitable for wall mounting
Yes
Housing color
Gray
Glow wire test according to IEC 60695-2-11
850 °C - 30 s
Height/Depth
76 mm
LED nominal current at constant current
378mA
Power factor
0.9
Conductor cross-section
0.5 mm
Luminaire with limited surface temperature D-mark
Yes
Luminaire luminous efficacy
130lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Light distributor
Diffuser lens/optics/panel
Light distribution
Symmetrical
Length
1215 mm
Max. system performance
31.460000000000004W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
With air slots
No
Nominal voltage
240V
Without dimming function
Yes
Number of poles
3
Impact resistance
IK08
Protection class
I
Voltage type
AC
Cover material
Plastic opal
Housing material
Plastic
