L1500 mm, polycarbonate, grey, power supply (on/off), 3400 lm, 24.5 W, 139 lm/W, 6500 K, (0.31,0.32)SDCM=3, wide beam (WB), matt, polycarbonate, protection against dust ingress, jet water protected, 5 J vandalism resistant, protection class I, quick connector, 3-pin
| Property | Value |
| Rated luminous flux according to IEC 62722-2-1: | 3400 lm |
| Color temperature: | 6500 K |
| Color rendering index CRI: | 80-89 |
| Color consistency (McAdam ellipse): | SDCM3 |
| Protection class (IP): | IP65 |
| Impact resistance: | IK08 |
| Protection class: | I |
| Rated ambient temperature according to IEC62722-2-1: | 20 - 40 °C |
| Length: | 1515 mm |
| Width: | 80 mm |
| Height/Depth: | 76 mm |
| Voltage type: | AC |
| Nominal voltage: | 220 - 240 V |
| Max. System power: | 24.5 W |
| Luminaire luminous efficacy: | 139 lm/W |
| Power factor: | 0.9 |
| With control gear: | yes |
| Control gear: | LED control gear current-controlled |
| Connection type: | Plug-in terminal |
| Number of poles: | 3 |
| Type of wiring: | suitable for through-wiring |
| With light source: | yes |
| Light source: | LED not replaceable |
| Light emission: | direct |
| Light distribution: | symmetrical |
| Beam angle: | extremely wide beam >,80° |
| Light distributor: | diffuser lens/optics/panel |
| Housing colour: | grey |
| Housing material: | plastic |
| Cover material: | matt/satin plastic |
| Luminaire with limited surface temperature 'D-mark': | yes |
| Glow wire test according to IEC 60695-2-11: | 850 °C - 30 s |
| Suitable for surface mounting: | yes |
| Suitable for ceiling mounting: | yes |
| Suitable for pendant suspension: | yes |
| Total harmonic distortion (THD): | 20 |
| Photobiological safety according to EN 62471: | RG0 |
| Flicker value Pst LM: | 1 |
| Stroboscopic effect value SVM: | 1.6 |
| Packaging unit: | 1 |
| Packaging unit: | 9 |
| Packaging unit: | 81 |
| Weight: | 1.7 |
| Weight unit: | KG |
| Weight reference quantity: | 1 |
| Socket: | other |
| Conductor cross-section: | 0.5 mm² |
| Design of the grid: | without |
| Wall mounting: | yes |
| Cover of the luminaire with thermal insulation material possible: | yes |
| Suitable for number of lamps: | 1 |
| Nominal current: | 120 mA |
| Light colour: | white |
| Rated service life L70/B50 at 25 °C: | 75000 h |
| Without dimming function: | yes |
| Glare limitation (UGR): | 25 |
| Max. number of lights circuit breaker C16: | 102 |
| Max. Number of luminaires with circuit breaker B16: | 60 |
| Luminous flux reduction after an average service life of 50,000 hours at an ambient temperature of 25 °C: | 80 % |
| Failure rate after an average service life of 50,000 hours at an ambient temperature of 25 °C. (tq): | 5 % |
| Installation height/depth: | 1515 mm |
| Surface protection housing: | untreated |

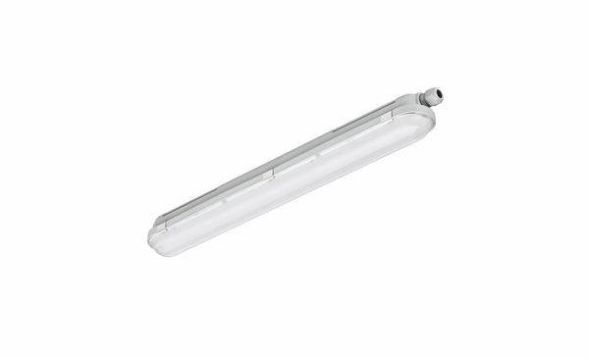

| Short description: | CoreLine damp-proof luminaire WT120C, 24.5 W, L1500 mm, 3400 lm, 6500 K, wide beam (WB), matt, IP65, IK08, TW1-ready |
| Energy efficiency class of the light source according to EU Directive 2019/2015: | D |
Features
Total harmonic distortion (THD)
20
Stroboscopic effect value SVM
1.6
Flicker value Pst LM
1
Wall mounting
Yes
HAB
WT120C G2 LED34S/865 PSU L1500
Manufacturer
HAN
36934199
GTIN
8710163369341
Covering the luminaire with thermal insulation material possible
Yes
Connection type
Plug-in terminal
Type of wiring
Suitable for through wiring
Execution of the grid
Without
Beam angle
Extremely wide beam >80°
Rated lifetime L70/B50 at 25 °C
75000 hours
Rated luminous flux according to IEC 62722-2-1
3400lm
Rated ambient temperature according to IEC62722-2-1
20 - 40 °C
Operating device
LED control gear current controlled
Glare limitation (UGR)
25
Width
80 mm
Installation height/depth
1515 mm
Energy efficiency class of the light source according to EU Directive 2019/2015
D
Color consistency (McAdam ellipse)
SDCM3
Color temperature
6500K
Color rendering index CRI
80-89
Version
Other
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for number of lamps
1
Suitable for pendulum suspension
Yes
Housing color
Gray
Weight
1,7
Weight unit
kg
Glow wire test according to IEC 60695-2-11
850 °C - 30 s
Height/Depth
76 mm
Short description
CoreLine damp-proof luminaire WT120C, 24.5 W, L1500 mm, 3400 lm, 6500 K, wide beam (WB), matt, IP65, IK08, TW1-ready
Power factor
0.9
Conductor cross-section
0.5 mm²
Luminaire with limited surface temperature D-mark
Yes
Luminaire luminous efficacy
139lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Light distributor
Diffuser lens/optics/panel
Light distribution
Symmetrical
Length
1515 mm
Max. number of luminaires Circuit breaker B16
60
Max. number of luminaires Circuit breaker C16
102
Max. system performance
24.5W
With operating device
Yes
With light source
Yes
Nominal voltage
220 - 240V
Rated current
120mA
Surface protection housing
Untreated
Without dimming function
Yes
Photobiological safety according to EN 62471
RG0
Number of poles
3
Impact resistance
IK08
IP protection)
IP65
Protection class
I
Voltage type
AC
Packaging Unit
1
Cover material
Plastic matt/satin
Housing material
Plastic
