Description
Features
Reviews

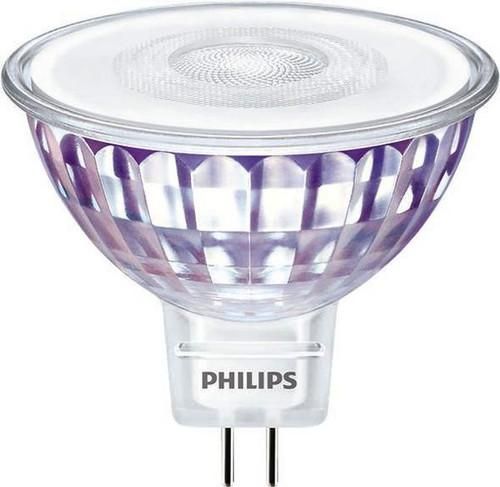

Replace your old low-voltage halogen reflector lamps and save money. With their compact dimensions, MASTER LEDspot MR16/MR11 are the perfect replacement for halogen reflector lamps and use up to 80% less energy.
| Property | Value |
| Color temperature: | 2700 K |
| Color rendering index CRI: | 90-100 |
| Color consistency (McAdam ellipse): | SDCM6 |
| Protection class (IP): | IP20 |
| Length: | 45.5 mm |
| Voltage type: | AC |
| Nominal voltage: | 12 V |
| Power factor: | 0.7 |
| Housing color: | other |
| Photobiological safety according to EN 62471: | RG1 |
| Weight: | 0.06 |
| Weight unit: | KG |
| Color: | white |
| Socket: | GU5.3 |
| Diameter: | 50.5 mm |
| Luminous intensity: | 750 cd |
| Lamp shape: | Reflector |
| Medium Nominal service life: | 25000 h |
| Weighted energy consumption in 1,000 hours: | 8 kWh |
| Lamp wattage: | 7.5 W |
| Energy spectrum: | A - G |
| Lamp luminous efficacy: | 82 lm/W |
| Light color according to EN 12464-1: | warm white |
| Nominal current: | 660 mA |
| Luminous flux: | 621 lm |
| Lamp designation: | MR16 |
| Min. Number of switching operations: | 50000 |
| Beam angle: | 60 ° |
| Rated luminous flux according to IEC 62612: | 621 lm |
| Energy efficiency index (EEI): | 0.1576 |
| Energy efficiency class according to EU Directive 2019/2015: | F |
| Short description: | MASTER LEDspot & Value MR16/MR11 low-voltage reflector lamps - LED lamp/Multi-LED - Energy consumption: 7.5 W - Energy efficiency class: F |
| Dimming trailing edge: | yes |
| Dimming Phase control: | yes |
Features
Energy efficiency index (EEI)
0.1576
Manufacturer
HAN
PH-30738400
GTIN
8719514307384
Beam angle
60°
Rated luminous flux according to IEC 62612
621lm
Dimming trailing edge
Yes
Dimming phase control
Yes
Diameter
50.5 mm
Energy spectrum
A - G
Energy efficiency class according to EU Directive 2019/2015
F
Color
Color consistency (McAdam ellipse)
SDCM6
Color temperature
2700K
Color rendering index CRI
90-100
Housing color
Other
Weight
0,06
Weighted energy consumption in 1,000 hours
8 kWh
Weight unit
kg
Short description
MASTER LEDspot & Value MR16/MR11 low-voltage reflector lamps - LED lamp/Multi-LED - Energy consumption: 7.5 W - Energy efficiency class: F
Lamp designation
MR16
Lamp shape
Reflector
Lamp power
7.5W
Lamp luminous efficacy
82lm/W
Power factor
0.7
Light colour according to EN 12464-1
Warm white
Luminous flux
621lm
Light intensity
750 cd
Length
45.5 mm
Min. number of switching operations
50000
Average nominal life
25000 hours
Nominal voltage
12V
Rated current
660mA
Photobiological safety according to EN 62471
RG1
IP protection)
IP20
Base
GU5,3
Voltage type
AC
