Feedthrough base block, nominal cross section: 2.5 mm², color: green, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: tin, contact type: pin (male), number of potentials: 4, number of rows: 1, number of poles: 4, number of connections: 4, article family: DFK-MSTB 2.5/..-GF, pitch: 5.08 mm, connection type: solder/flat plug connection, mounting: direct mounting, pin layout: linear pinning, pin length [P]: 9.3 mm, number of solder pins per potential: 1, plug system: COMBICON MSTB 2.5, alignment of plug face: standard, locking: screw locking, fastening type: threaded flange, packaging type: packed in a box
| Property | Value |
| Number of rows of plug contacts: | 1 |
| Type of banding: | Cardboard (for SMD) |
| Type of PCB fastening: | other |
| Design of electrical connection: | other |
| Mounting type: | other |
| Rated voltage: | 15 V |
| Rated impulse voltage: | 4 kV |
| Rated current In: | 15 A |
| Operating temperature: | -40 to 100 °C |
| Flammability class of the insulating material according to UL 94: | V2 |
| Diameter of the connection pin: | 3.2 mm |
| Housing color: | green |
| Contact design: | pin |
| Length of the pin: | 9.3 mm |
| Pitch of the connections: | 5.08 mm |
| Pitch of contacts: | 5.08 mm |
| Connector design: | fixed connector |
| Overvoltage category: | III |
| Pollution level: | 2 |
| Material of contact coating: | tin |
| Material of insulating body: | other |
| Angle of circuit board/contact: | other |
| Connection type: | PCB to cable |
| Number of pins: | 4 |
Features
Rated surge voltage
4 kV
HAB

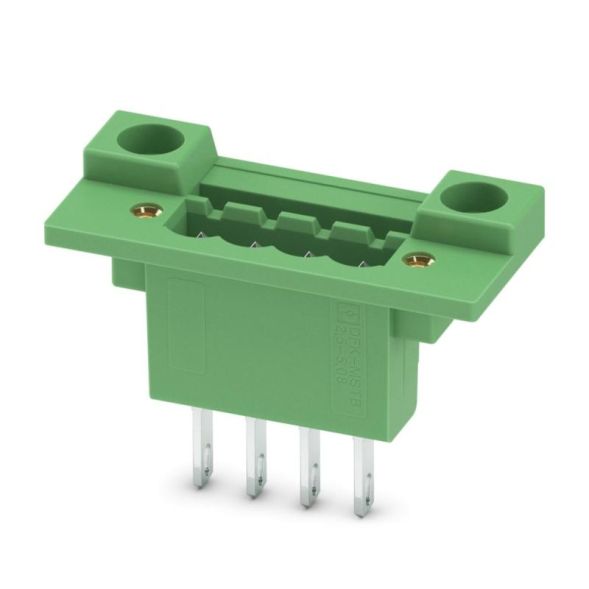

DFK-MSTB 2.5/ 4-GF-5.08 4-pin green
Minimal order
50 pcs
Manufacturer
HAN
0710196
GTIN
4017918005221
Design of the electrical connection
Other
Mounting type
Other
Rated voltage
15V
Rated current In
15A
Operating temperatur
-40 to 100 °C
Flammability class of the insulating material according to UL 94
V2
Housing color
Green
Number of poles
4
Connection type
PCB to cable
Degree of contamination
2
Overvoltage category
III
