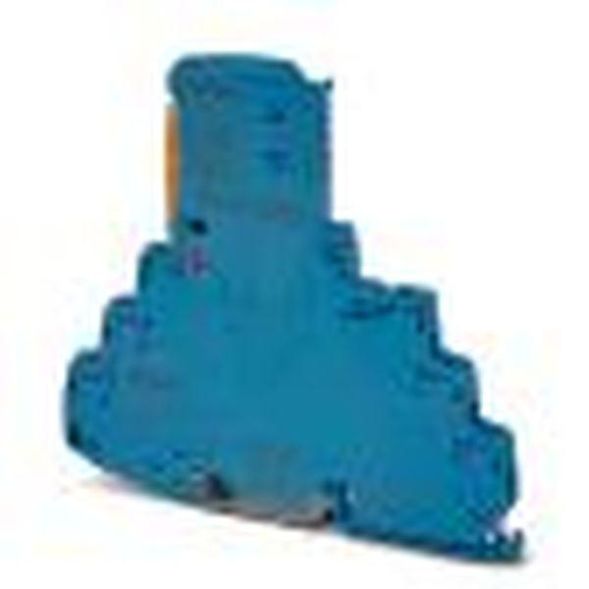

Surge protection, consisting of protective plug and base element, with integrated status display for a 2-wire earth-potential-free Ex-i signal circuit, e.g. 0(4).20 mA current loop, HART-capable.
| Property | Value |
| Signaling on the device: | optical |
| Mounting type: | other |
| Nominal discharge current (8/20): | 5 kA |
| Nominal load current: | 0.6 A |
| Connection 1: | Terminal |
| Highest continuous voltage DC: | 30 V |
| Protection level wire/wire: | 55 V |
| Protection level wire/earth: | 1400 V |
| With remote signaling contact: | no |
| Explosion-tested version: | yes |
| Nominal voltage DC: | 24 V |
Features
Explosion-tested version
Yes
With remote signaling contact
No
Connection 1
Clamp
Highest continuous voltage DC
30 V
Nominal load current
0.6 A
Nominal voltage DC
24 V
Protection level wire/wire
55 V
Protection level wire/earth
1400 V
HAB
TTC-6P-1X2-EX-24DC-UT-I
Manufacturer
HAN
1065312
GTIN
4055626725390
Mounting type
Other
Nominal discharge current (8/20)
5kA
Signaling on the device
Optical
