Description
PCB terminal, nominal current: 16 A, rated voltage (III/2): 160 V, nominal cross-section: 1.5 mm², number of rows: 1, number of poles per row: 18, article family: SPTAF 1/..-EL, pitch: 3.5 mm, connection type: push-in spring connection, assembly: wave soldering, conductor/board connection direction: 45 °, color: multicolored, pin layout: linear double pinning, pin length [P]: 2.6 mm, number of soldering pins per potential: 2, packaging type: packed in a cardboard box
Property | Value |
Connectable conductor cross-section, single-wire: | 0.2 to 1.5 mm² |
Connectable conductor cross-section, fine-stranded with wire end ferrule: | 0.25 to 0.75 mm² |
Connectable conductor cross-section, fine-stranded without wire end ferrule: | 0.2 to 1.5 mm² |
Connectable conductor cross-section, multi-stranded: | 1.5 mm² |
Conductor connection type: | Spring-loaded connection |
PCB connection type: | other |
Number of levels: | 1 |
Type of banding: | Cardboard (for SMD) |
Type of PCB mounting: | Connection contact |
Rated voltage: | 160 V |
Rated impulse voltage: | 2.5 kV |
Rated current In: | 16 A |
Operating temperature: | -40 to 100 °C |
Flammability class of the insulating material according to UL 94: | V0 |
Diameter of the connection pin: | 1.1 mm |
Colour of housing: | other |
Height: | 12.8 mm |
Length of pin: | 2.6 mm |
Pitch of connections: | 3.5 mm |
Overvoltage category: | III |
Pollution level: | 2 |
Material of connection surface: | Tin |
Material of Insulating body: | other |
Angle circuit board/conductor connection: | other |
Features
Rated surge voltage
2.5 kV
HAB

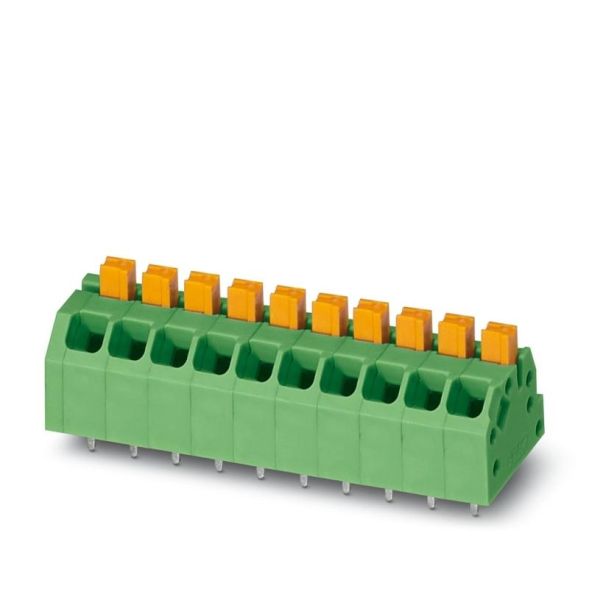

SPTAF 1/18-3.5-EL MCGY/GY
Minimal order
50 pcs
Manufacturer
HAN
1065343
GTIN
4055626727370
Connectable conductor cross-section solid
0.2 to 1.5 mm²
Connectable conductor cross-section stranded
1.5 mm²
Rated voltage
160V
Rated current In
16A
Operating temperatur
-40 to 100 °C
Flammability class of the insulating material according to UL 94
V0
Housing color
Other
Height
12.8 mm
Degree of contamination
2
Overvoltage category
III
