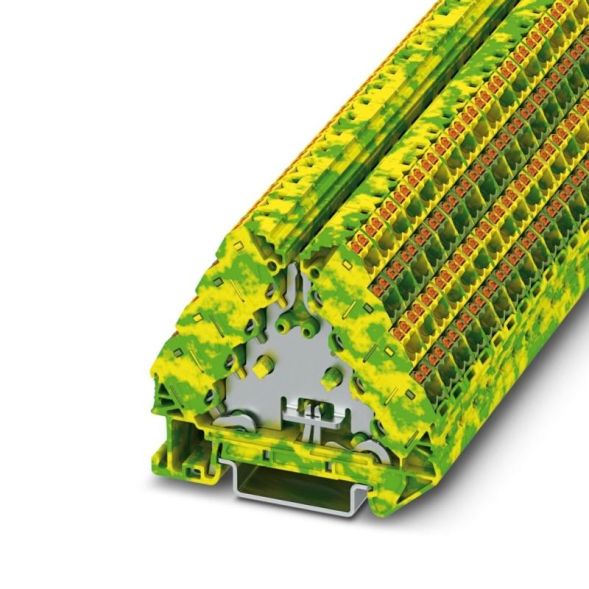

Protective conductor terminal, number of connections: 16, number of poles: 2, connection type: push-in connection, 1st, 2nd, 3rd and 4th level, cross-section: 0.14 mm² - 2.5 mm², mounting type: NS 35/7.5, NS 35/15, color: green-yellow
| Property | Value |
| Operating temperature: | 105 °C |
| Connectable conductor cross-section, single-wire: | 0.14 to 2.5 mm² |
| Connectable conductor cross-section, stranded: | 0.14 to 1.5 mm² |
| Connectable conductor cross-section, fine-stranded without wire end ferrule: | 0.14 to 1.5 mm² |
| Connectable conductor cross-section, fine-stranded with wire end ferrule: | 0.14 to 1.5 mm² |
| Design of electrical connection 1: | other |
| Design of electrical connection 2: | other |
| Number of levels: | 4 |
| Number of terminal points per level: | 8 |
| Color: | other |
| Mounting type: | DIN rail TH35 |
| Flammability class of the insulating material according to UL 94: | V0 |
| End plate required: | yes |
| Material of the insulating body: | other |
Features
HAB
PTRVB4-PE
Minimal order
10 pcs
Manufacturer
HAN
1070018
GTIN
4055626747835
Connectable conductor cross-section solid
0.14 to 2.5 mm²
Connectable conductor cross-section stranded
0.14 to 1.5 mm²
Operating temperatur
105°C
Flammability class of the insulating material according to UL 94
V0
Color
Mounting type
DIN rail TH35
