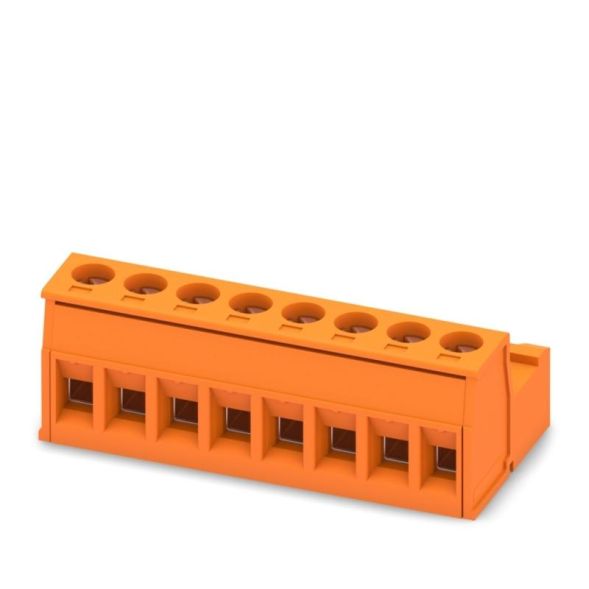

PCB connector, nominal cross section: 2.5 mm, color: orange, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: tin, contact type: pin (male), number of rows: 1, number of positions per row: 8, article family: IC 2.5/..-ST, pitch: 5.08 mm, connection type: screw connection with tension sleeve, screw attack form: L longitudinal slot, connection direction conductor/PCB: 0 °, locking hook: - without locking hook, plug-in system: CLASSIC COMBICON, locking: without, fastening type: without, packaging type: packed in a box
| Property | Value |
| Connectable cable type: | other |
| Connectable conductor cross section single-wire: | 0.2 to 2.5 mm² |
| Connectable conductor cross-section, stranded with wire end ferrule: | 0.25 to 2.5 mm² |
| Connectable conductor cross-section, stranded without wire end ferrule: | 0.2 to 2.5 mm² |
| Number of plug contact rows: | 1 |
| Design of the electrical connection: | Screw connection |
| Rated voltage: | 320 V |
| Rated impulse voltage: | 4 kV |
| Rated current In: | 12 A |
| Operating temperature: | -40 to 100 °C |
| Flammability class of the insulating material according to UL 94: | V0 |
| Housing color: | orange |
| Contact design: | other |
| With protective conductor: | no |
| Pitch of the connections: | 5.08 mm |
| Contact pitch: | 5.08 mm |
| Overvoltage category: | III |
| Pollution level: | 2 |
| Contact coating material: | Tin |
| Housing material: | Other |
| Insulating body material: | Other |
| Contact material: | Copper |
| Angle contact/conductor connection: | other |
| Connection type: | other |
| Housing coating: | other |
Features
Rated surge voltage
4 kV
HAB
IC 2.5/ 8-ST-5.08 OG
Minimal order
50 pcs
Manufacturer
HAN
1224257
GTIN
4063151314842
Connectable conductor cross-section solid
0.2 to 2.5 mm²
Design of the electrical connection
Screw connection
Rated voltage
320V
Rated current In
12A
Housing coating
Other
Operating temperatur
-40 to 100 °C
Flammability class of the insulating material according to UL 94
V0
Housing color
Orange
Connection type
Other
Degree of contamination
2
Housing material
Other
Overvoltage category
III
