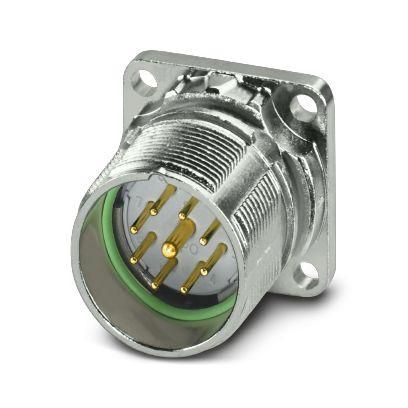

Device connector, front panel, M23 PRO, straight, for standard and ONECLICK quick locking, M23, number of poles: 8+1, direction of rotation: standard, contact type: pin, solder connection, 4x Ø2.7, flange size: 26 mm x 26 mm, coding: N
| Property | Value |
| With shield connection: | no |
| With PE connection: | no |
| Flammability class of the insulating material according to UL 94: | V0 |
| Ambient temperature: | 105 °C |
| Operating temperature: | -40 to 105 °C |
Features
HAB
M23-09P1N12WB00S
Manufacturer
HAN
1339324
GTIN
4063151644161
Operating temperatur
-40 to 105 °C
Flammability class of the insulating material according to UL 94
V0
Ambient temperature
105°C
